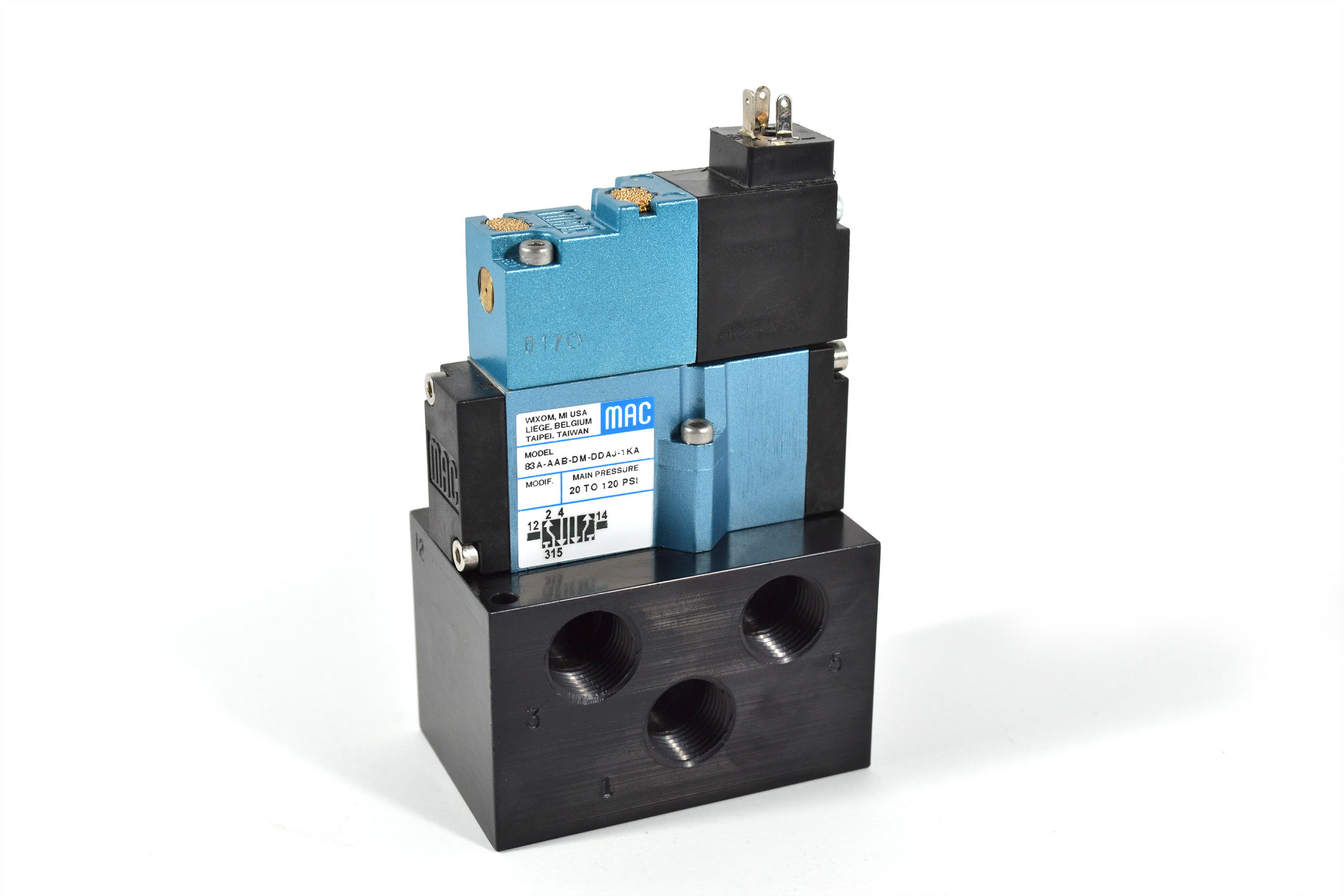

4-WAY AIR VALVES
MAC Valves Solenoid Operated 4 Way
Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.
Small 4 Way Valves
Air flows up to 1.2 Cv
Large 4 Way Valves
Air flows from 1.2 Cv and hihger
SKU: 612290
Category: Products
Additional Information
Dimensions | 8 × 2 × 5 cm |
---|


Quickview
BV10
Products10mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV210) AND 3-WAY (BV310) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): 2-Way up to 0.08, 3-Way up to 0.09
Configurations: Cartridge - Manifold: Non Plug-in
Click on image to download our Bullet Valve Catalog






Quickview
MI/O-67® Fieldbus
ProductsMI/O-67® Communications Module from MAC Valves is available for these fieldbus protocols:
- EtherNet/IP®
- EtherCAT®
- POWERLINK®
- PROFINET®
- Modbus/TCP®
Click here for more MI/O-67 details
EtherNet/IP® Resources



Quickview
[sf_button colour="blue" type="standard" size="large" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]How To Order This Valve[/sf_button]

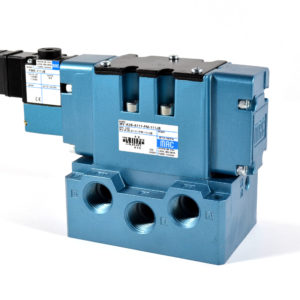

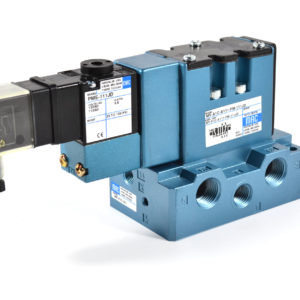

ISO VALVES
Products
Series |
ISO 01 info |
ISO 02 info |
ISO 1 info |
ISO 2 info |
ISO 3 info |
---|---|---|---|---|---|
Flow Cv |
1.0 | 0.43 | 1.8 | 3.0 | 6.1 |
Port Size | 1/4" | 1/8" | 1/4-3/8" | 3/8-1/2" | 1/2-3/4" |


Quickview

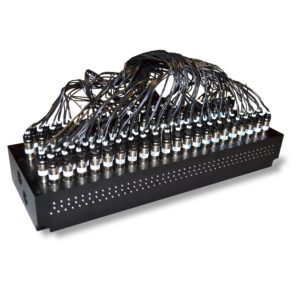

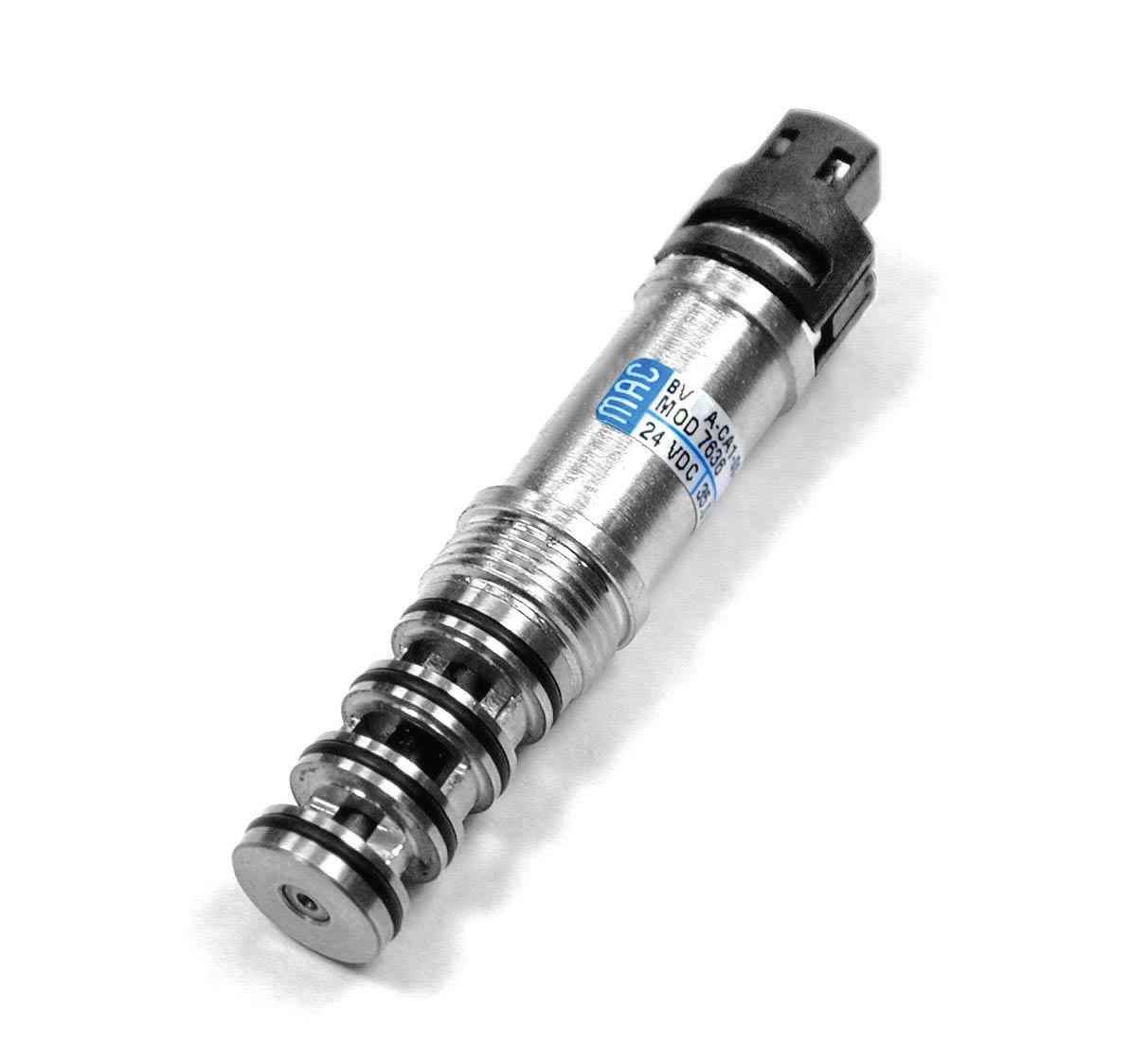

BULLET VALVE®
ProductsThe MAC Advantage Features:
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): 0.60
Configurations: Cartridge - Manifold: Non Plug-in
Click on image to download our Bullet Valve Catalog




Quickview
3-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 3 Way
Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valvesSmall 3 Way Valves
Air flows up to 1.2 CvLarge 3 Way Valves
Air flows from 1.5 Cv and higher

Quickview

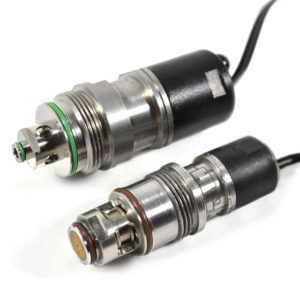

LIQUID BULLET VALVE®
ProductsThe MAC Advantage Features:
- AVAILABLE IN 2-WAY AND 3-WAY CONFIGURATIONS
- NON-WETTED SOLENOID
- ACCURATE AND REPEATABLE DOSING
- D-FLEX™ TECHNOLOGY
- RELIABLE OPERATION IN EXTREME ENVIRONMENTS

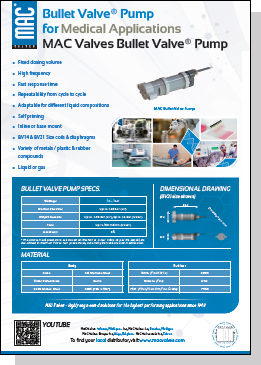

Check out our latest MAC Valves Advantage video focused on Micro Dosing or click on the image below to download our Liquid Valve Flyer

[sf_button colour="blue" type="standard" size="large" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]How To Order the Liquid Bullet Valve®[/sf_button]


Quickview
[sf_button colour="blue" type="standard" size="large" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]How To Order This Valve[/sf_button]

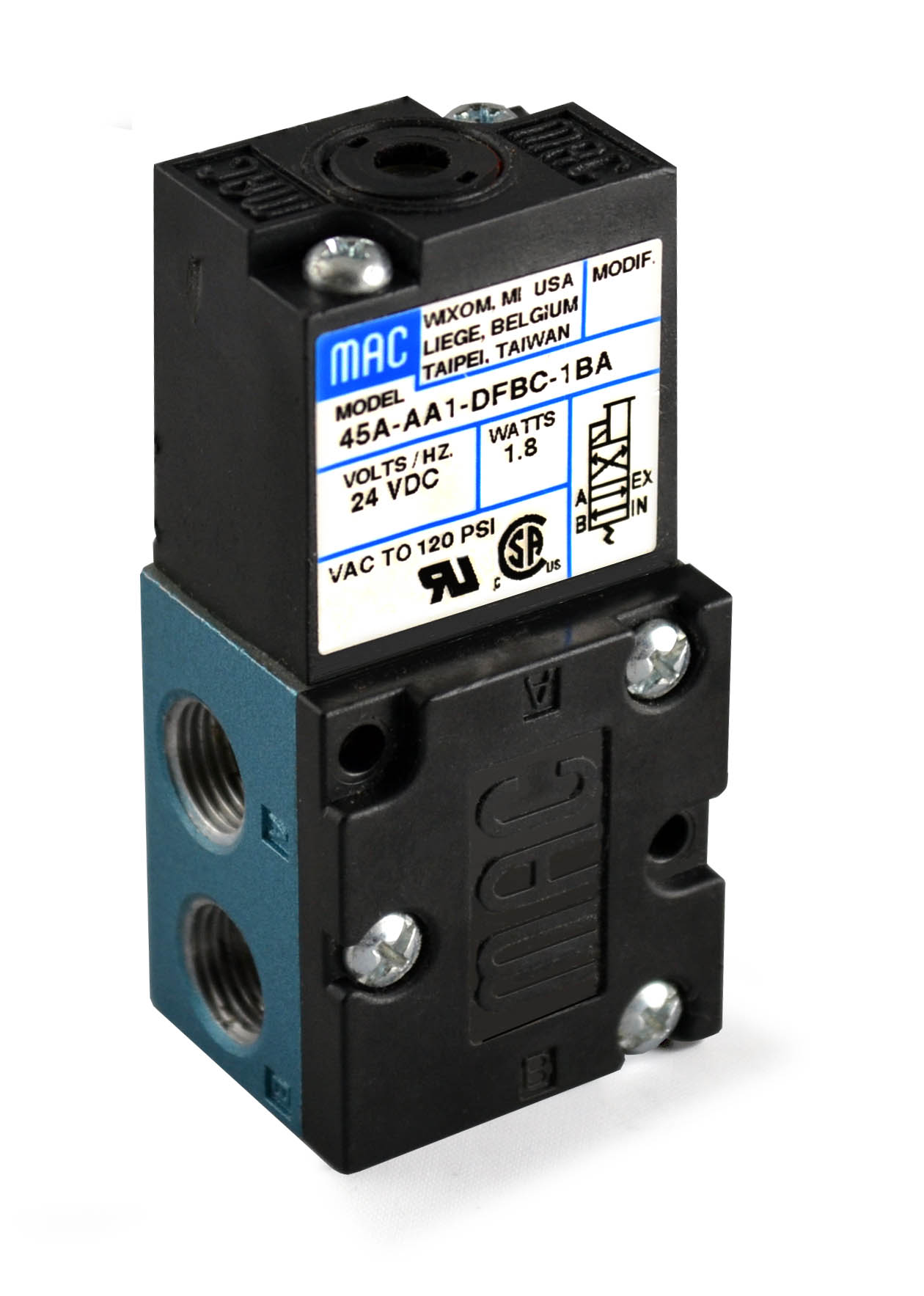

MINIATURE AIR VALVES
Products
Series |
31 info |
BV info |
33 info |
34 info |
---|---|---|---|---|
Flow Cv |
0.06 | 0.07 | 0.08 | 0.12 |
Port Size | M3 | M3 | M5-#10-32 |

Series |
41 info |
43 info |
44 info |
---|---|---|---|
Flow Cv |
0.035 | 0.07 | 0.10 |
Port Size | M3 | M5-#10-32-1/8" | M5-#10-32 |


Quickview
PULSE VALVE
Products
The MAC patented Pulse Valve series was developed to replace current diaphragm style technology and create a more robust and reliable valve solution in industrial applications. MAC Pulse Valves are ideal to replace existing diaphragm technology in applications such as reverse jet bag houses and dust collectors, pneumatic conveying and bulk material handling.
The MAC patented Pulse Valve can be ordered in one of two pilot configurations: The Integral Solenoid pilot combines fast, repeatable pulses with the addition of a Manual Operator, while our Remote Bleed version to improve performance and reliability in Hazardous Locations. The main body of the MAC Pulse Valve utilizes bonded spool technology for superior reliability beyond existing diaphragm technology. A checked accumulator and a main spool with memory spring are used to ensure a shift back to the home position, for times when air supply may not be adequate. A line of adapter plates has also been released to replace existing diaphragm pulse valves with a direct drop-in, without disturbing existing plumbing.
It is currently available in (3) sizes; the PV03, for ¾” and 1” applications and the PV06, for 1 ½” applications, and PV09 for 2" and 2 ½" applications.
Check out MAC’S LATEST VIDEO featuring the MAC Pulse Valve
MAC PV03 Brochure
MAC PV06 Brochure
MAC PV09 Brochure
MAC Pulse Valve Technical Paper


Quickview
BV14
Products14mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.24 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve Catalog




Quickview
BV21
Products21mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV221) AND 3-WAY (BV321) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.60 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve Catalog
