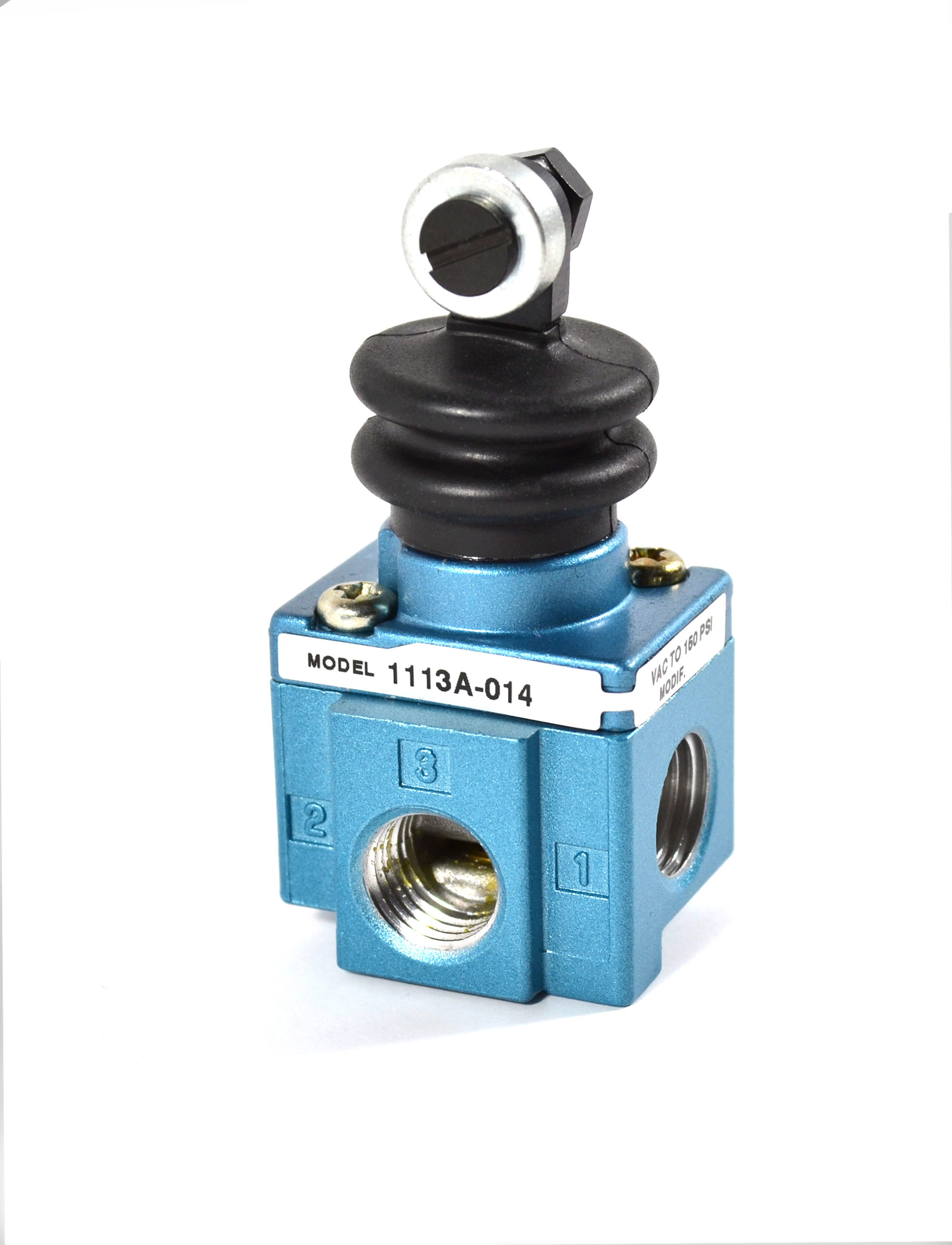

1100 Series
The MAC 1100 Series is a versatile 3-way mechanically operated valve. This series features a wide variety of manual operator options, from levers and push-buttons to cams and remote air operated versions. Our unique balanced design means versatility in piping – the valve can be configured as a 3-way or 2-way – normally closed or normally open or can be used for vacuum, diverter, or selector applications. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Cv (Max): 0.18
Port Sizes: 1/8-1/4″
Inline – Sub Base/Manifold
1100 Series Catalog Pages
1100 Series Remote Air Pages
Category: Small 3-Way Valves
Quickview
35 Series
Small 3-Way Valves
The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
35 Series Catalog Pages
35 Series Circuit Bar Pages
35 Series Regulator Pages
35 Series Remote Air Pages
35 Series Intrinsically Safe Pages
Quickview
37 Series
Small 3-Way Valves
The MAC 37 Series is a high flow direct solenoid operated 3-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.
Application, Installation and Service Precautions
Cv (Max): 0.50
Port Sizes: 1/8"-1/4"
Configurations: Inline - Individual Sub Base/Manifold: Plug-in/Non Plug-in
37 Series Catalog Pages
37 Series Circuit Bar Pages
37 Series Regulator Pages
Quickview
36 Series
Small 3-Way Valves
The MAC 36 Series is a high flow direct solenoid operated 3-way poppet valve. It features a short stroke solenoid with oval armature, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.30
Port Size: 1/8"
Configurations: Inline - Manifold: Plug-in/Non Plug-in
36 Series Catalog Pages
36 Series Circuit Bar Pages
36 Series MAConnect Pages
Quickview
34 Series
Small 3-Way Valves
The Mac 34 series is a direct solenoid operated 3-way - 10mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.12
Port Sizes: M5-10-32
Configurations: Manifold: Plug-in/Non Plug-in
34 Series Catalog Pages
34 Series Circuit Bar Pages
34 Series Regulator Pages
Quickview
33 Series
Small 3-Way Valves
The Mac 33 series is a direct solenoid operated 3-way - 8mm - poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, high flow in a small package and long life. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.08
Port Sizes: M3
Configurations: Inline - Manifold: Plug-in/Non Plug-in
33 Series Catalog Pages
33 Series Circuit Bar Pages
Quickview
100 Series
Small 3-Way Valves
The MAC 100 Series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping - the valve can be configured as a 3-way or 2-way - normally closed or normally open or can be used for vacuum, diverter, or selector applications. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.18
Port Sizes: 1/8-1/4"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
100 Series Catalog Pages
100 Series Intrinsically Safe Pages
Quickview
35L Series
Small 3-Way Valves
The MAC 35L Series is a direct solenoid operated 3-way poppet valve featuring our patented Bullet™ technology. Bullet™ technology is a unique hybrid technology that utilizes a “Lifting” solenoid (denoted by the “L” in 35L) with an integrated armature/balanced poppet. The solenoid configuration features fewer parts and fewer wear points than our standard 35 series solenoid. Our lifting solenoid design is isolated from airline contaminants and our signature balanced design means more consistent shifting forces and repeatable response times regardless of inlet pressure fluctuations.
Application, Installation and Service Precautions
Cv (Max): 0.17
Port Size: 1/8"
Configurations: Inline - Stacking - Sub Base/Manifold: Non Plug-in
35L Series Catalog Pages
Quickview
38 Series
Small 3-Way Valves
The MAC 38 Series is a high flow 16mm 3-way spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 1.2
Port Sizes: 1/8"-1/4"
Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in
38 Series Catalog Pages
38 Series Circuit Bar Pages
38 Series Regulator Pages
38 Series Remote Air Pages
38 Series MAConnect Pages
Quickview
32 Series
Small 3-Way Valves
The MAC 32 Series is high flow 10mm 3-way solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure - no pistons - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.4
Port Sizes: 1/8"-1/4"
Configurations: Individual Sub Base/Manifold: Plug-in/Non Plug-in
32 Series Catalog Pages
32 Series Circuit Bar Pages
32 Series Regulator Pages
32 Series MAConnect Pages
Quickview
36L Series
Small 3-Way Valves
The MAC 36L Series is a direct solenoid operated 3-way poppet valve featuring our patented Bullet™ technology. Bullet™ technology is a unique hybrid technology that utilizes a “Lifting” solenoid (denoted by the “L” in 36L) with an integrated armature/balanced poppet. By reconfiguring the standard 36 Series push type solenoid construction to a lifting design while maintaining the balanced principles of MAC Valves, we have added the benefits of longer life and greater repeatability without sacrificing the technology that has made the 36 Series a market leader. For information regarding certifications (such as UL, CSA, RoHS, and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.30
Port Size: #10-32, 1/8", M5
Configurations: Inline - Manifold: Plug-in/Non Plug-in
36L Series Catalog Pages
Quickview
200 Series
Small 3-Way Valves
The MAC 200 Series is a direct solenoid operated 3-way poppet valve. This unique series is also available for Hazardous Location applications (Class I/Div B,C, & D - Class II/Div E,F, & G). It also features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times and long life. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
Cv (Max): 0.50
Port Sizes: 1/8"-1/4"
Configurations: Inline - Hazardous Location - Manifold: Non Plug-in
200 Series Catalog Pages
200 Series Regulator Pages
Quickview

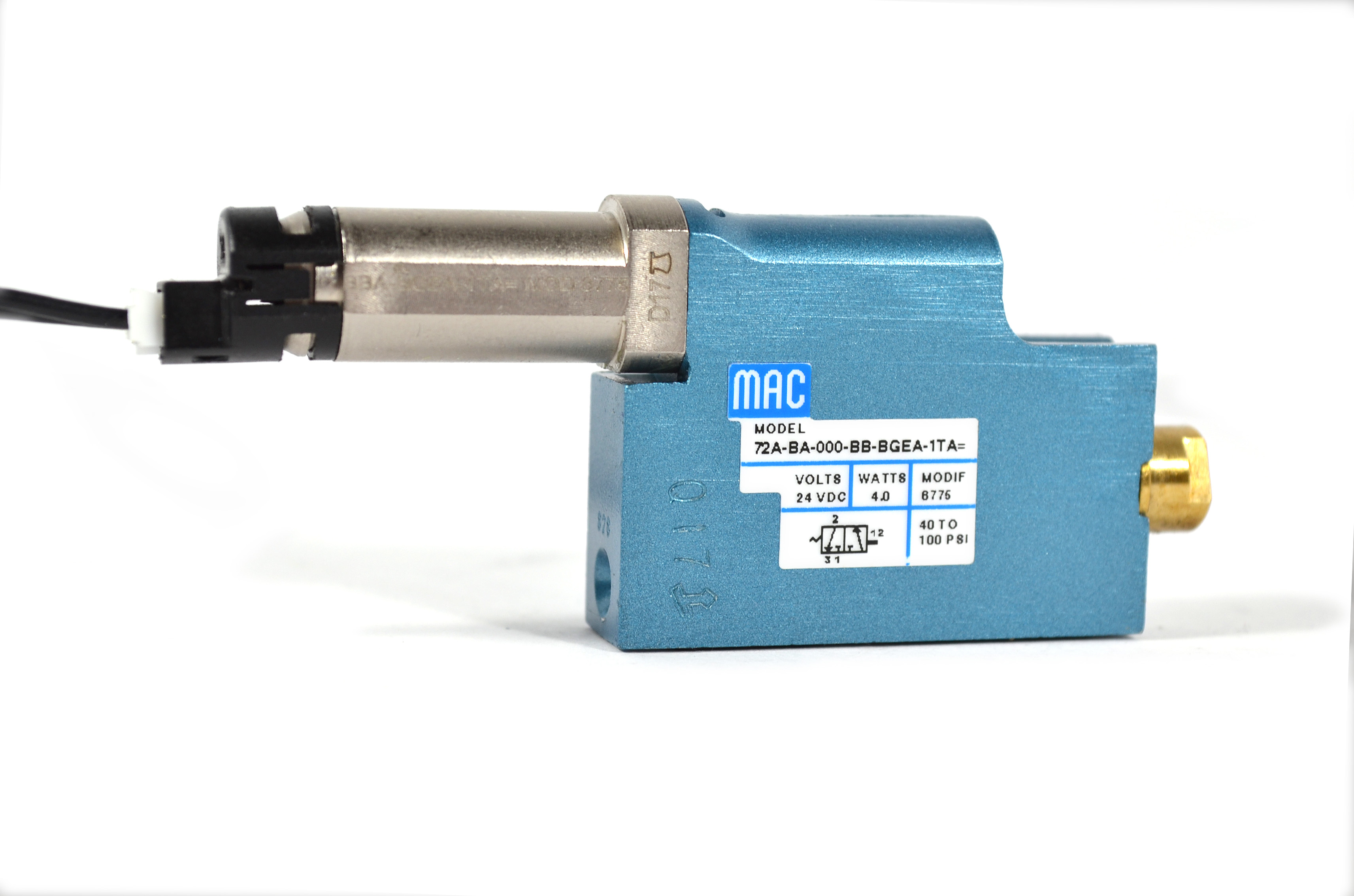

72 Series
Small 3-Way Valves
The MAC 72 Series valve is a 3-way balanced P.O.P. (Pilot Operated Poppet) valve - pilot operated by our Bullet Valve® technology - patents pending. The Bullet Valve® utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - as shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
Application, Installation and Service Precautions
