52 Series

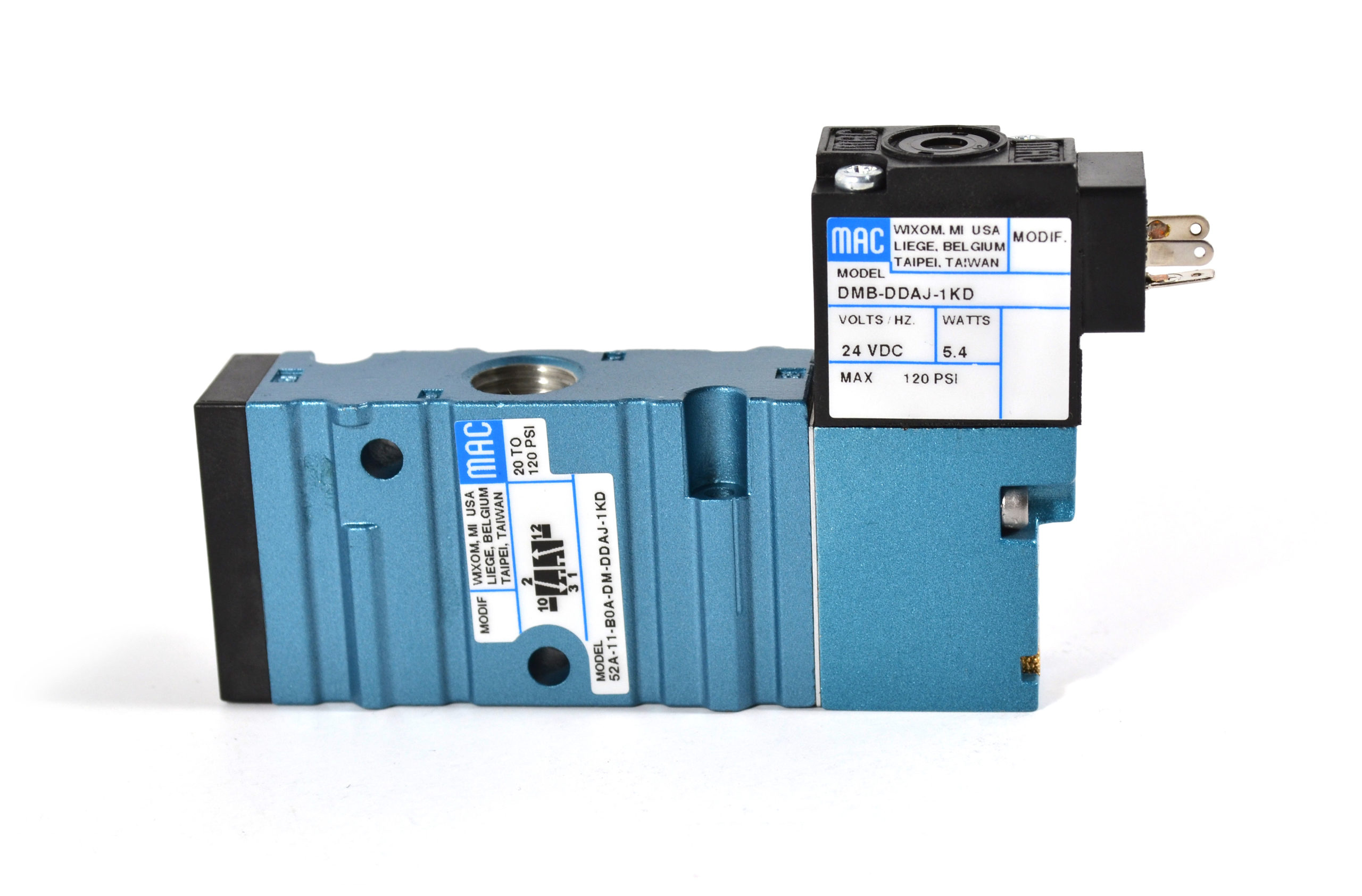

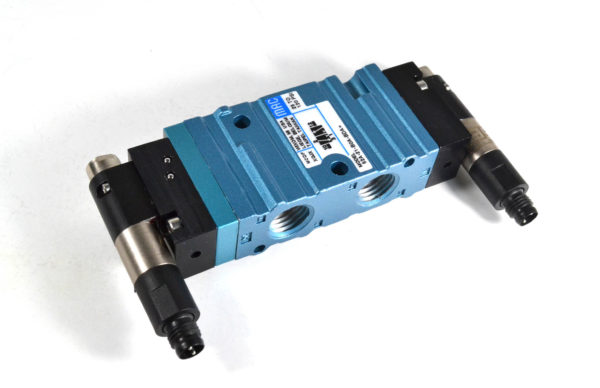

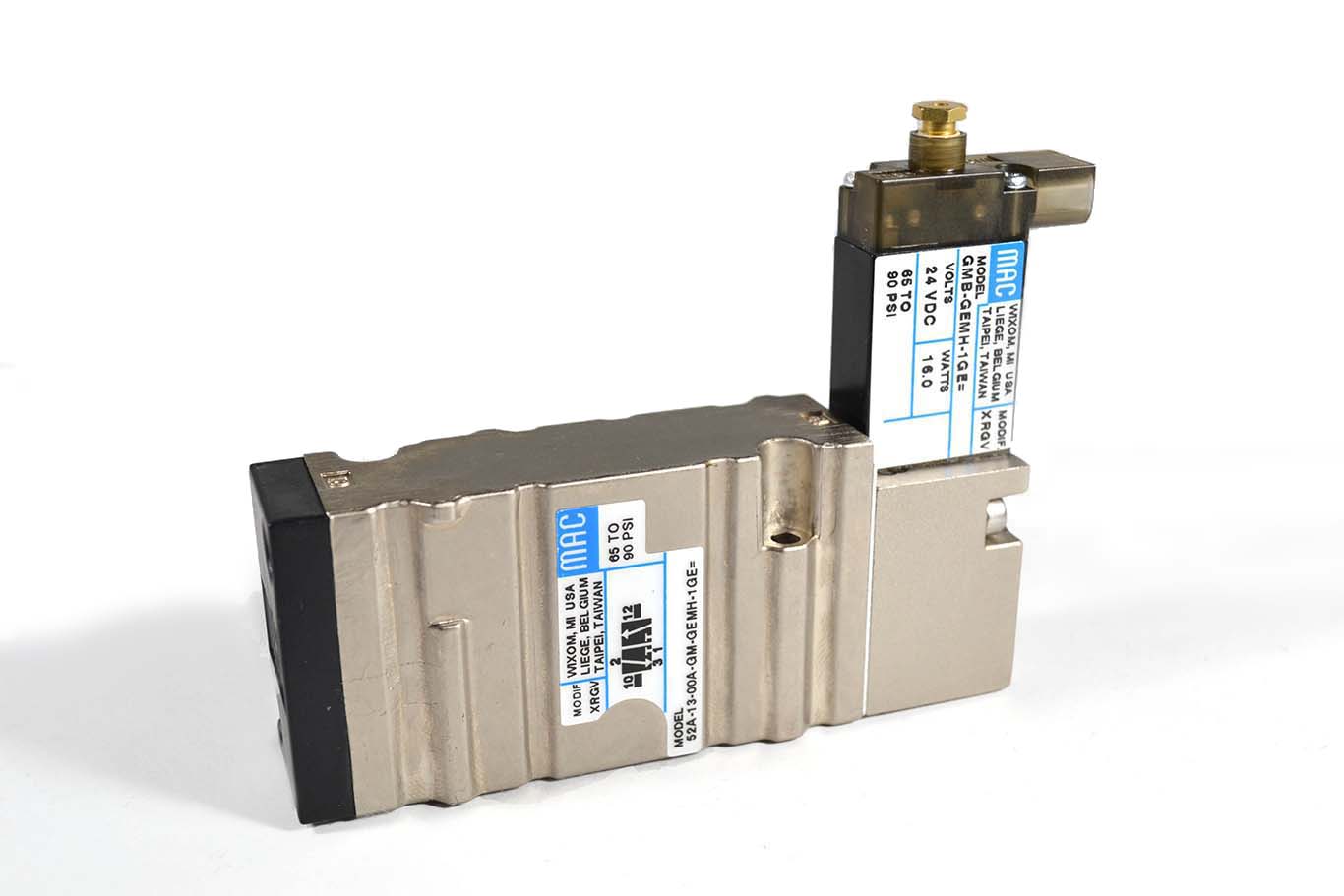

The MAC 52 Series is a 3-way balanced spool valve pilot operated by a small direct operated 4-way solenoid valve – a one-off in valve manufacturing.  The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions

Cv (Max):  1.5

Port Sizes:  1/8″-1/4″

Configurations:  Inline/Sub Base – Manifold:  Non Plug-in

52 Series Catalog Pages

52 Series Circuit Bar Pages

52 Series Intrinsically Safe Pages
