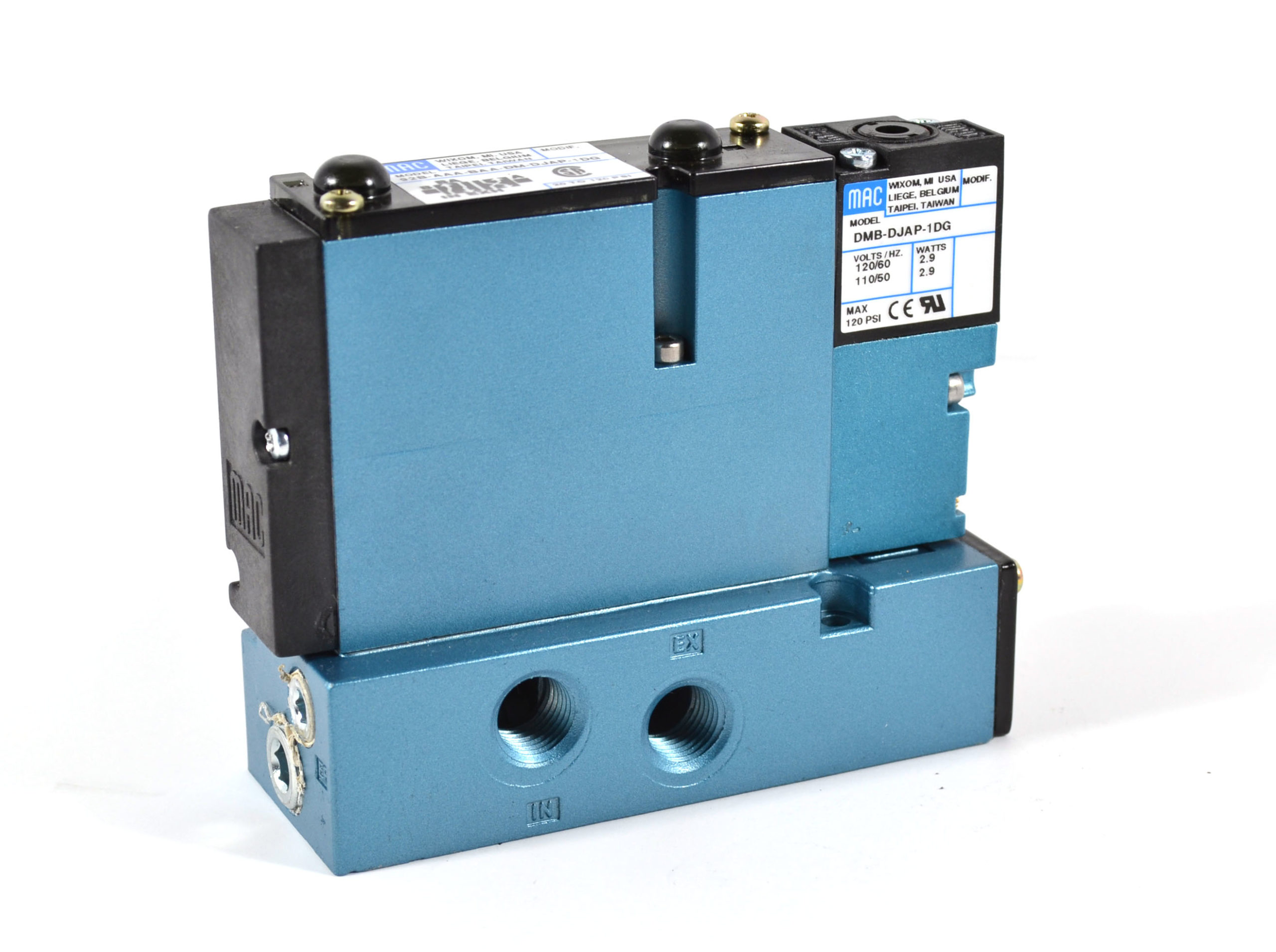

  • 92 A

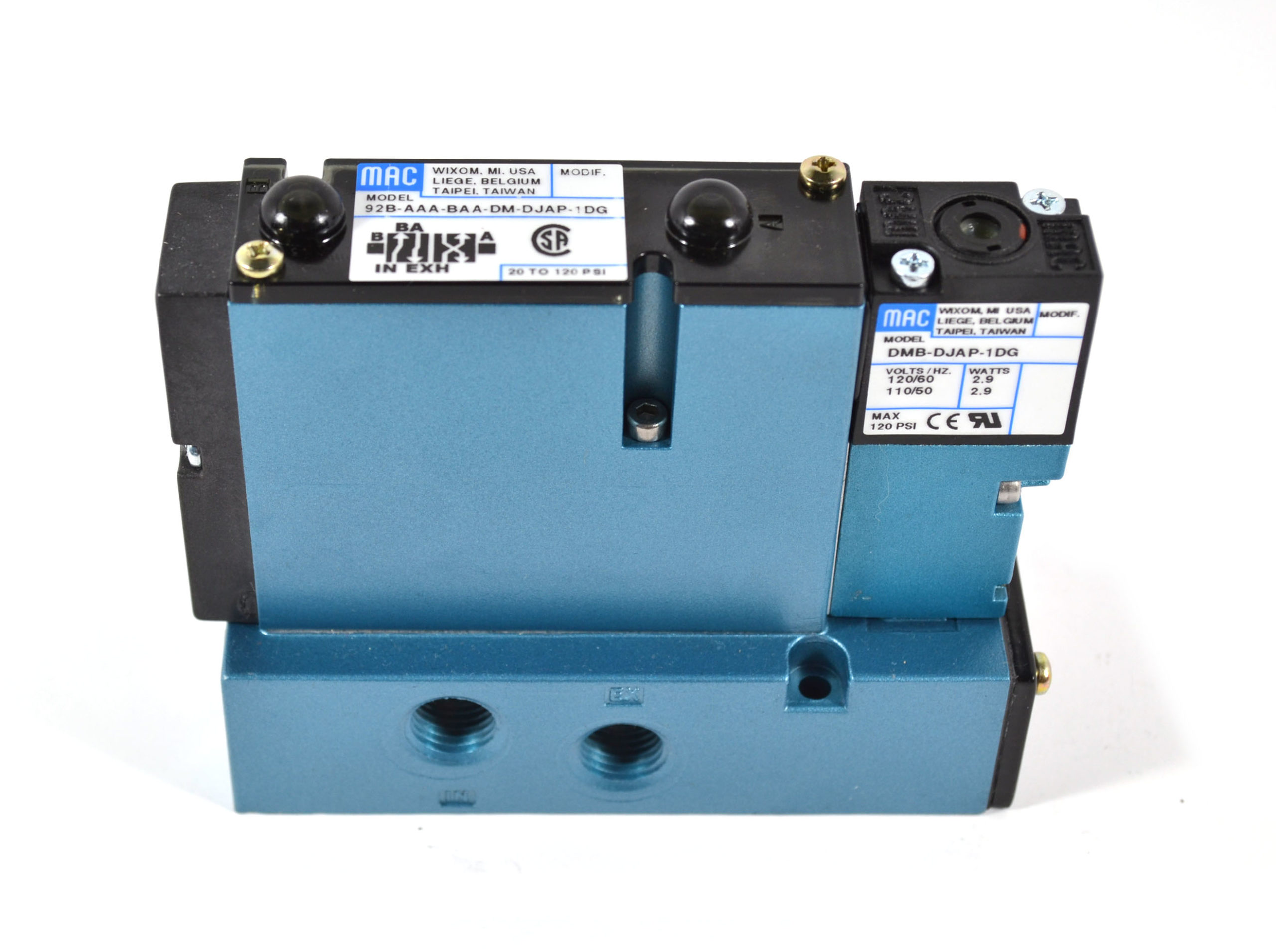

  • 92 B

92 Series

The MAC 92 Series is a 4-way spool valve pilot operated by a small direct operated 4-way solenoid valve – a one-off in air valve manufacturing.  The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting.  The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For more information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.

Application, Installation and Service Precautions

Cv (Max):  1.2

Port Sizes:  1/8″-3/8″

Configurations:  Individual Sub base/Manifold:  Plug-in/Non Plug-in

92 Series Catalog Pages

92 Series Circuit Bar Pages

92 Series Regulator Pages

92 Series Remote Air Pages

92 Series Intrinsically Safe Pages

92 Series MAConnect Pages
