3-WAY AIR VALVES
MAC Valves Solenoid Operated 3 Way
Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valves

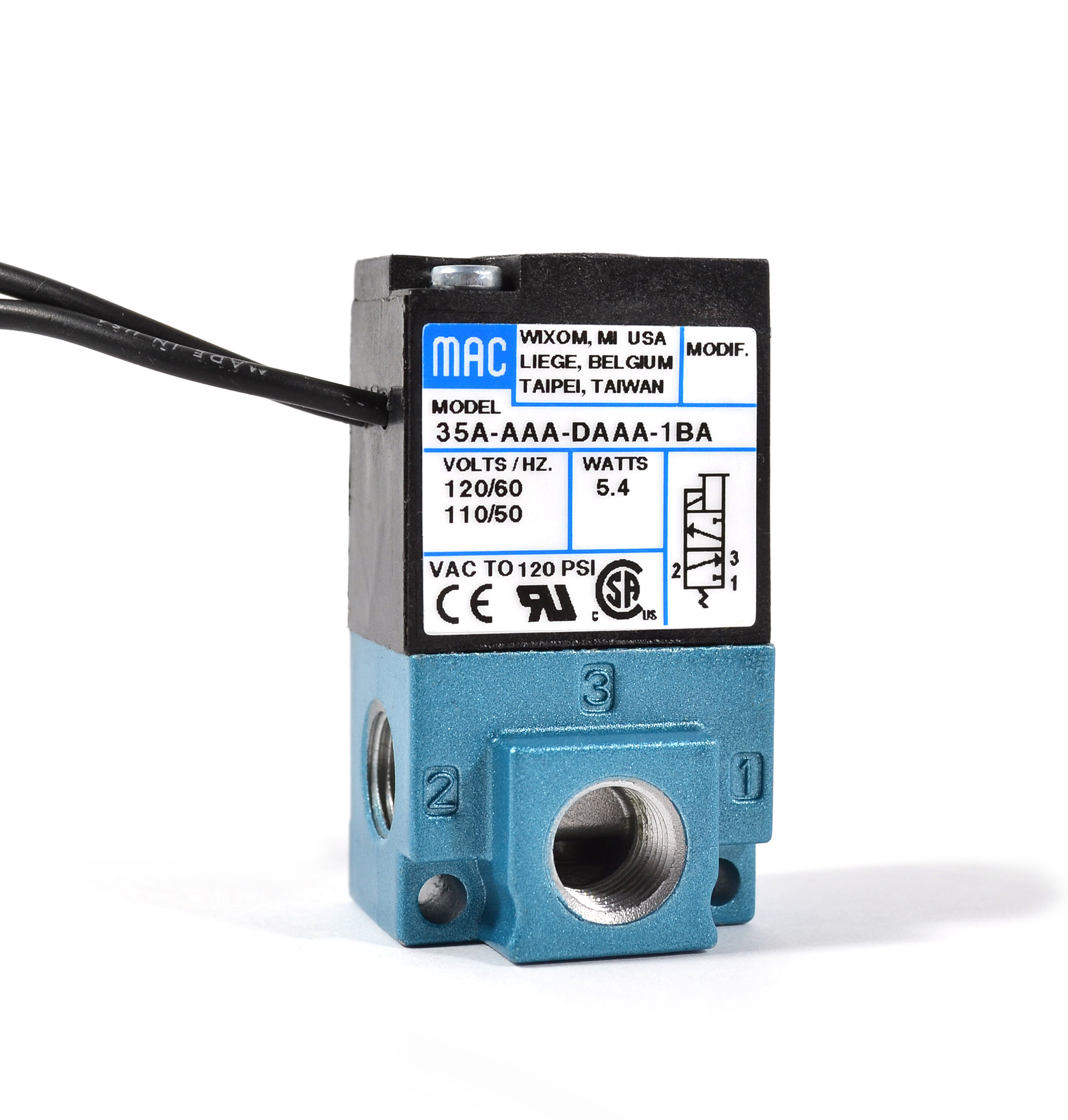

Small 3 Way Valves
Air flows up to 1.2 Cv

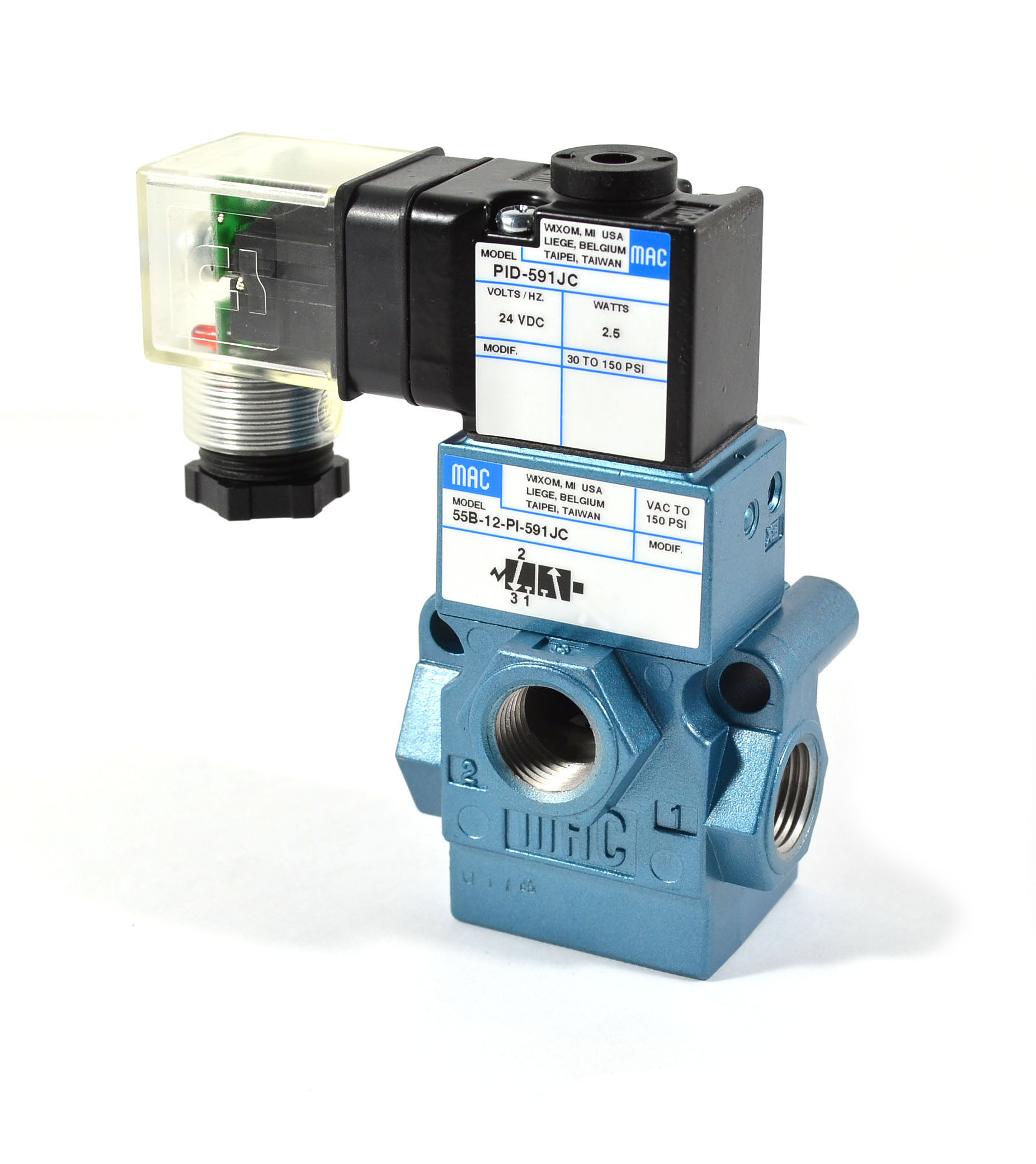

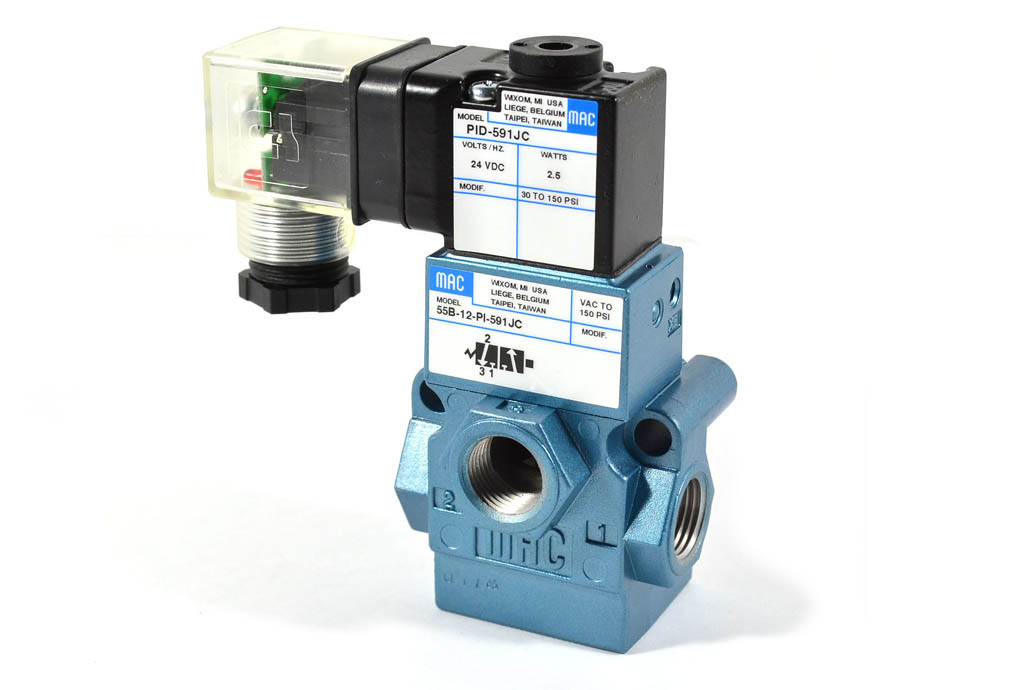

Large 3 Way Valves
Air flows from 1.5 Cv and higher
SKU: 681988
Category: Products
Quickview
Hazardous Locations Technology
ProductsMAC's extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175 Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application. | |
Explosion Proof Small/large 3 way valves Small/Large 4 way valves Pulse valves | Intrinsically Safe Bullet valves® Small/large 3 way valves Small/Large 4 way valves |
Approvals Approvals Matrix Approval documents | Other Resources . . |
Quickview
PULSE VALVE
Products
The MAC patented Pulse Valve series was developed to replace current diaphragm style technology and create a more robust and reliable valve solution in industrial applications. MAC Pulse Valves are ideal to replace existing diaphragm technology in applications such as reverse jet bag houses and dust collectors, pneumatic conveying and bulk material handling.
The MAC patented Pulse Valve can be ordered in one of two pilot configurations: The Integral Solenoid pilot combines fast, repeatable pulses with the addition of a Manual Operator, while our Remote Bleed version to improve performance and reliability in Hazardous Locations. The main body of the MAC Pulse Valve utilizes bonded spool technology for superior reliability beyond existing diaphragm technology. A checked accumulator and a main spool with memory spring are used to ensure a shift back to the home position, for times when air supply may not be adequate. A line of adapter plates has also been released to replace existing diaphragm pulse valves with a direct drop-in, without disturbing existing plumbing.
It is currently available in (3) sizes; the PV03, for ¾” and 1” applications and the PV06, for 1 ½” applications, and PV09 for 2" and 2 ½" applications.
MAC PV03 Brochure
MAC PV06 Brochure
MAC PV09 Brochure
MAC PV12 Brochure
MAC Pulse Valve Technical Paper
MAC Pulse Valve ATEX
Quickview
BV21
Products21mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV221) AND 3-WAY (BV321) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.60 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve Catalog
Quickview
[sf_button colour="blue" type="standard" size="large" link="/distributors/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]Order This Valve[/sf_button]
ISO VALVES
Products
Series |
ISO01 info |
ISO02 info |
ISO1 3Way 4Way |
ISO2 3Way 4Way |
ISO3 3Way 4Way |
---|---|---|---|---|---|
Flow Cv |
1.0 | 0.43 | 1.8 | 3.0 | 6.1 |
Port Size | 1/4" | 1/8" | 1/4-3/8" | 3/8-1/2" | 1/2-3/4" |
Quickview
Explosion Proof
Products
Explosion proof is one of many protection techniques used in hazardous locations. This protection technique prevents the propagation of an explosion from inside the solenoid cover to the outside environment. Our explosion proof line up offers many of our best selling and performing valves.
Approval Documents
35 - MV Series
US Approval CA Approval ATEX Approval IECEx Approval
56-65- Series
US Approval CA Approval ATEX Approval
Series : 35 - 45 - 52 - 53 - 54 - 67 - 92 - 93 - 400 - PV - MV
Series : 56 - 57 - 58 - 59 - 82 - 200 - 800 - 6300 - 6500
Quickview
HAZARDOUS LOCATIONS
ProductsMAC Advantages for Hazardous Locations
MAC’s extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application.Comprehensive Range of Approvals:
MAC Hazardous Locations Options and Drawings
Namur and Optional Spacers
Quickview
BV10
Products10mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV210) AND 3-WAY (BV310) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): 2-Way up to 0.08, 3-Way up to 0.09
Configurations: Cartridge - Manifold: Non Plug-in
Click on image to download our Bullet Valve Catalog
Quickview
LIQUID VALVES
ProductsThe MAC Advantage™ Features:
- 2-way, 3-way, variable flow, filling and dosing valves
- Wetted and non-wetted (media-separated) solenoids
- Accurate and repeatable dosing
- Dual-diaphragm D-Flex™ Technology
- Reliable operation in extreme environments
Quickview
BULLET VALVE®
ProductsDesign Features of Bullet™ Technology:
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- AN INTEGRATED POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING OPTIONS
Cv (Max): 0.60
Configurations: Cartridge - Manifold: Non Plug-in
BViQ® is our latest Bullet Valve product
Click on image to download our Bullet Valve Catalog
Quickview
BV14
Products14mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.24 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve® Catalog
Quickview
MI/O-67® Fieldbus
ProductsMAConnect MI/O-67® will utilize existing MAConnect® technology with MI/O-67® specific part numbers | 6 Protocols EtherNet/IP® EtherCAT® POWERLINK® PROFINET® Modbus/TCP® I/O Link® |
3 Modules Digital, Analog and PowerPlus™ modules to accommodate any I/O or additional valves needed | IP67 Designed to meet IP67 washdown specifications (with appropriate valve series modifications) |
European Conformity Indicates conformity protection standards for products sold within the EEA | |
