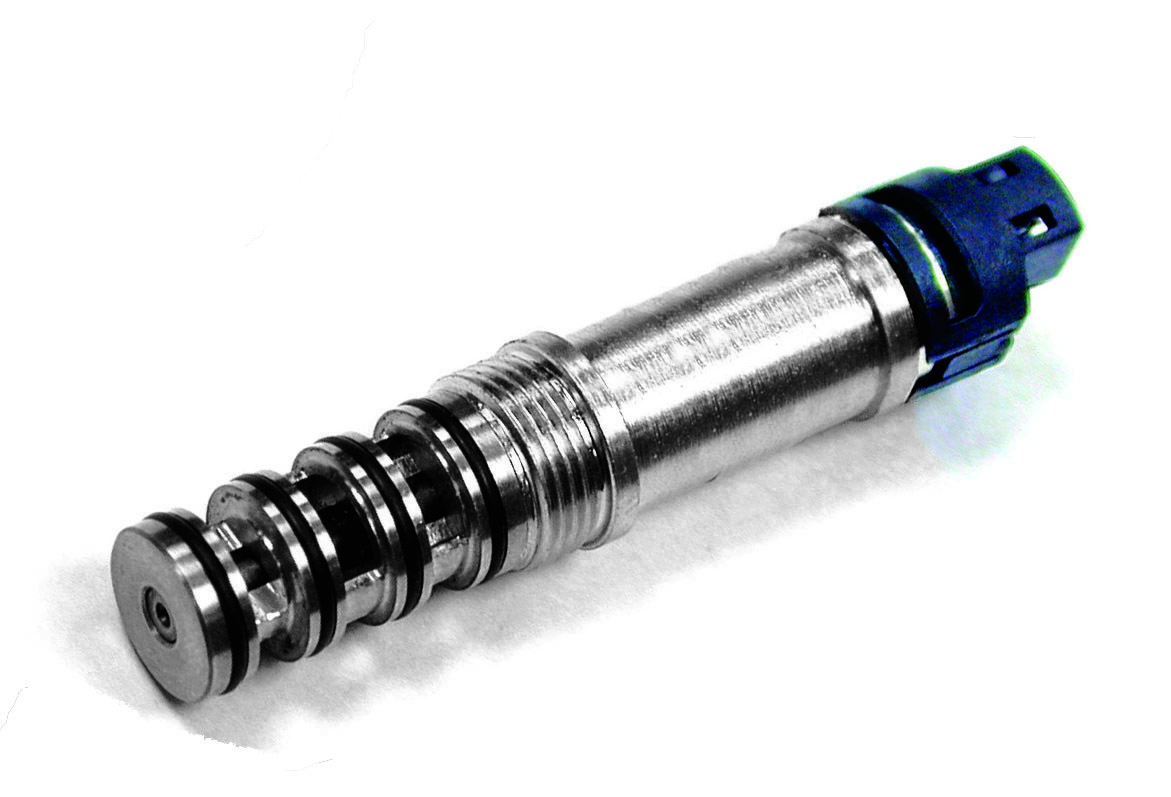

10mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV210) AND 3-WAY (BV310) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
The BV10 represents yet another evolution in air valve technology from MAC. The Bullet Valve® utilizes “lifting” solenoid technology. The MAC “lifting” configuration is unique, however, in that the valve maintains a balanced design – a signature feature of a MAC valve – shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV10 cartridge are available.
Application, Installation and Service Precautions
Cv (Max): 2-Way up to 0.08, 3-Way up to 0.09

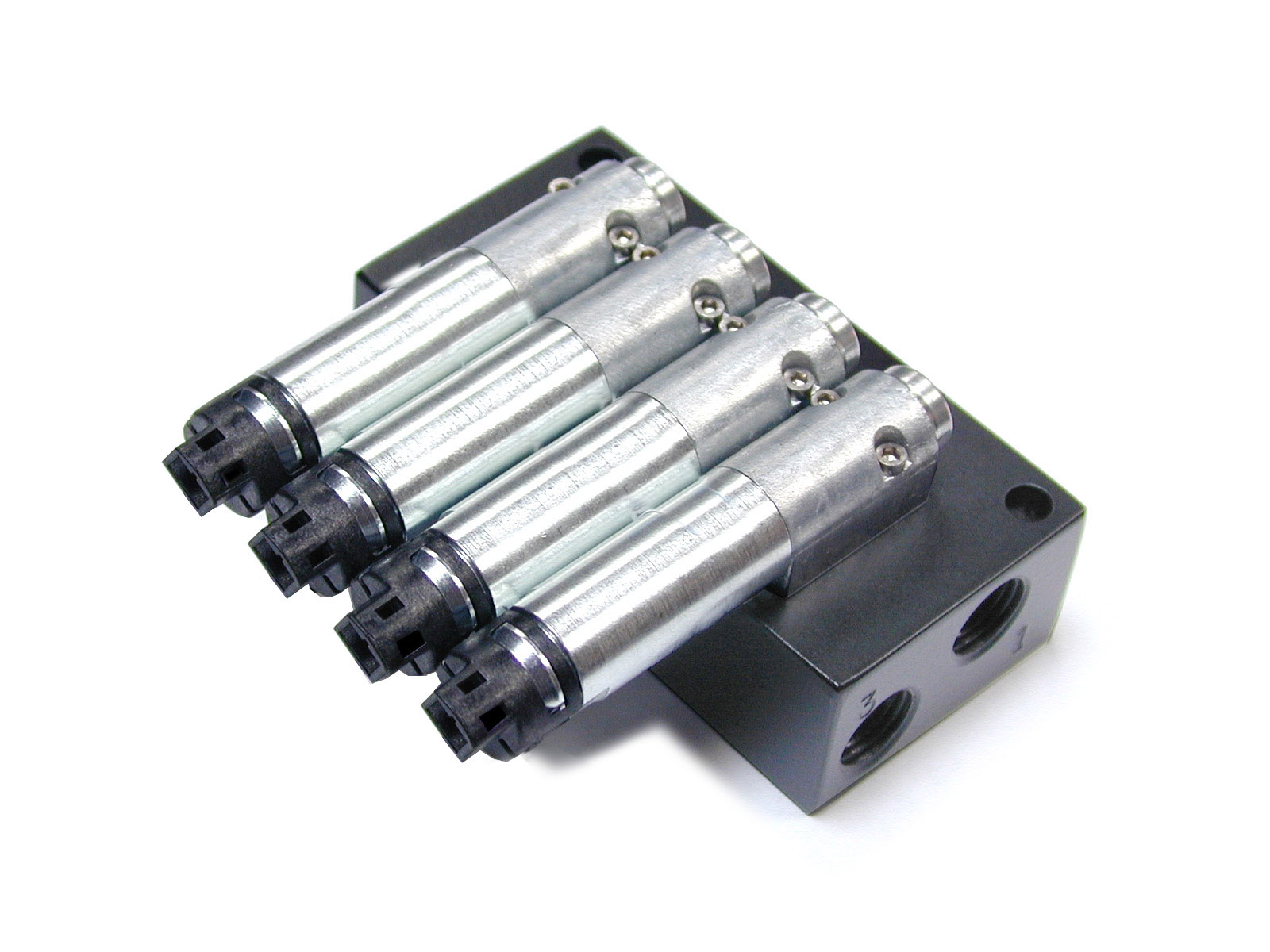

Configurations: Cartridge – Manifold: Non Plug-in
Click on image to download our Bullet Valve Catalog
Hazardous Locations Technology
ProductsMAC's extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175 Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application. | |
Explosion Proof Small/large 3 way valves Small/Large 4 way valves Pulse valves | Intrinsically Safe Bullet valves® Small/large 3 way valves Small/Large 4 way valves |
Approvals Approvals Matrix Approval documents | Other Resources . . |
BV21

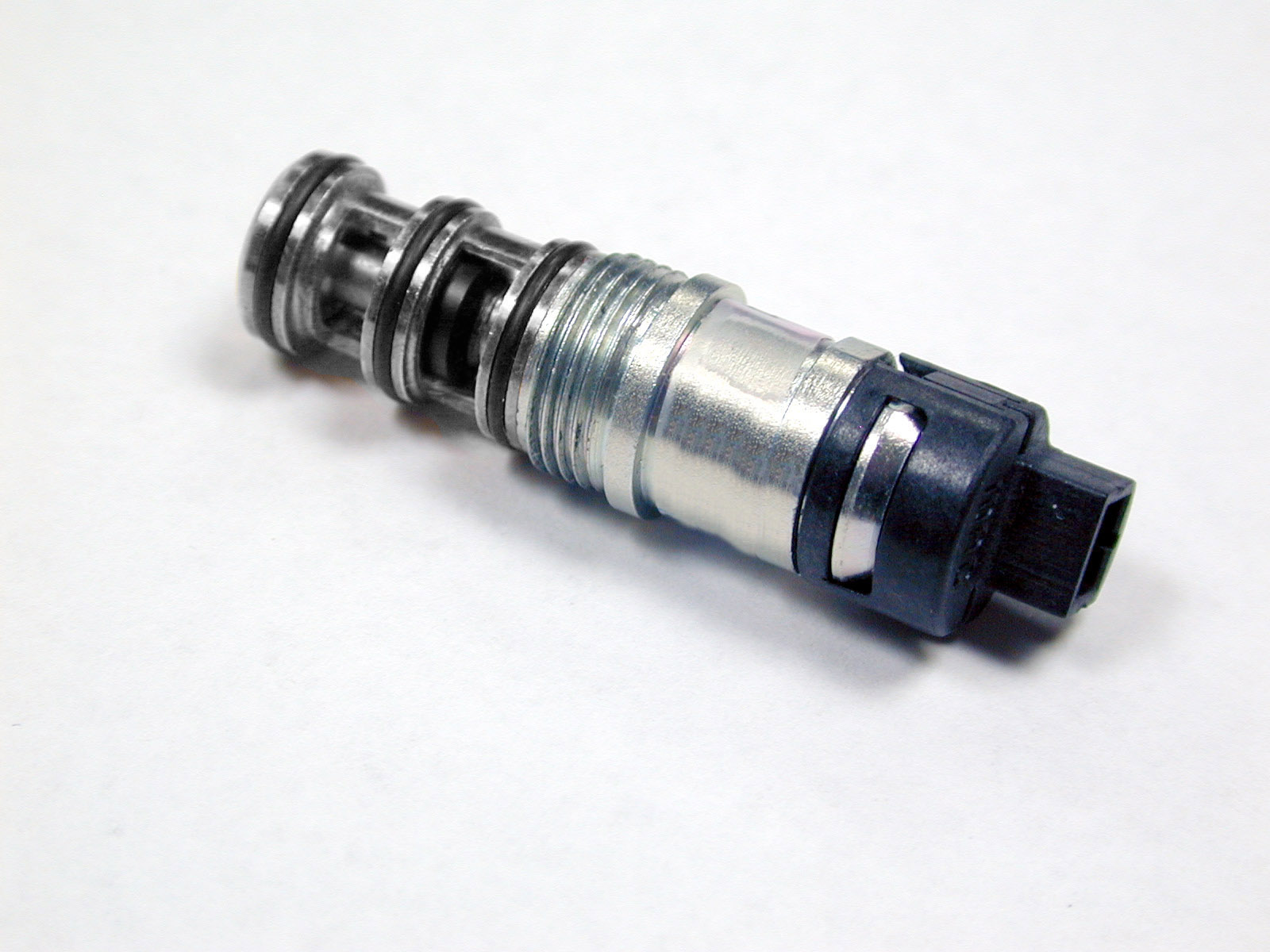

Products21mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV221) AND 3-WAY (BV321) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.60 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve Catalog
LIQUID VALVES
ProductsThe MAC Advantage™ Features:
- 2-way, 3-way, variable flow, filling and dosing valves
- Wetted and non-wetted (media-separated) solenoids
- Accurate and repeatable dosing
- Dual-diaphragm D-Flex™ Technology
- Reliable operation in extreme environments
BULLET VALVE®
ProductsDesign Features of Bullet™ Technology:
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- AN INTEGRATED POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING OPTIONS
Cv (Max): 0.60
Configurations: Cartridge - Manifold: Non Plug-in
BViQ® is our latest Bullet Valve product
Click on image to download our Bullet Valve Catalog
4-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 4 Way
Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.Small 4 Way Valves
Air flows up to 1.2 CvLarge 4 Way Valves
Air flows from 1.2 Cv and higherISO VALVES
Products
Series |
ISO01 info |
ISO02 info |
ISO1 3Way 4Way |
ISO2 3Way 4Way |
ISO3 3Way 4Way |
---|---|---|---|---|---|
Flow Cv |
1.0 | 0.43 | 1.8 | 3.0 | 6.1 |
Port Size | 1/4" | 1/8" | 1/4-3/8" | 3/8-1/2" | 1/2-3/4" |
Explosion Proof
ProductsApproval Documents
35 - MV Series
US Approval CA Approval ATEX Approval IECEx Approval
56-65- Series
US Approval CA Approval ATEX Approval
Series : 35 - 45 - 52 - 53 - 54 - 67 - 92 - 93 - 400 - PV - MV
Series : 56 - 57 - 58 - 59 - 82 - 200 - 800 - 6300 - 6500
MI/O-67® Fieldbus
ProductsMAConnect MI/O-67® will utilize existing MAConnect® technology with MI/O-67® specific part numbers | 6 Protocols EtherNet/IP® EtherCAT® POWERLINK® PROFINET® Modbus/TCP® I/O Link® |
3 Modules Digital, Analog and PowerPlus™ modules to accommodate any I/O or additional valves needed | IP67 Designed to meet IP67 washdown specifications (with appropriate valve series modifications) |
European Conformity Indicates conformity protection standards for products sold within the EEA | |
HAZARDOUS LOCATIONS
ProductsMAC Advantages for Hazardous Locations
MAC’s extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application.Comprehensive Range of Approvals:
MAC Hazardous Locations Options and Drawings
Namur and Optional Spacers
Hazardous Locations Technology2
ProductsMAC's extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175 Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application.
Explosion Proof Small/large 3 way valves Small/Large 4 way valves Pulse valves
Intrinsically Safe Bullet valves® Small/large 3 way valves Small/Large 4 way valves
Approvals Approvals Matrix Approval documents
BV14
Products14mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
