For over 70 years MAC Valves Inc. has been a global manufacturing leader in the pneumatic and fluid valve industries. MAC’s innovative technology featuring our patented poppet, spool and recently developed Bullet Valve designs has raised the performance bar in the pneumatic valve industry. We offer a solution to all your pneumatic applications.

OUR FEATURED PRODUCTS

Quickview
4-WAY AIR VALVES

Products

Quickview
4-WAY AIR VALVES
Products

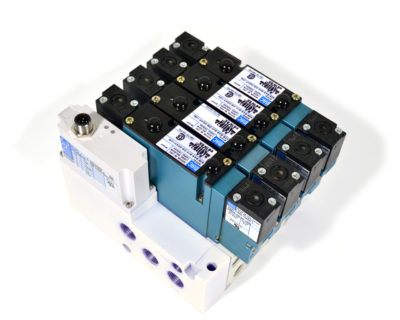

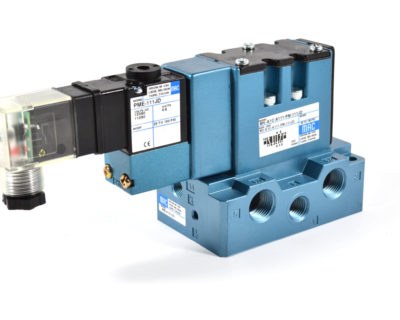

MAC Valves Solenoid Operated 4 Way
Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.
Small 4 Way Valves
Air flows up to 1.2 Cv
Large 4 Way Valves
Air flows from 1.2 Cv and hihger
Quickview
3-WAY AIR VALVES

Products

Quickview
3-WAY AIR VALVES
Products

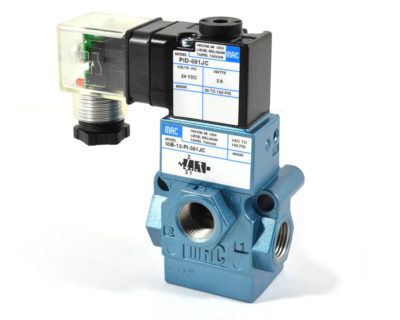

MAC Valves Solenoid Operated 3 Way
Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valves
Small 3 Way Valves
Air flows up to 1.2 Cv
Large 3 Way Valves
Air flows from 1.5 Cv and higher
Quickview
MINIATURE VALVES

Products

Quickview
MINIATURE VALVES
Products

Series

31 info

BV info

33 info

34 info

Flow Cv
0.06 0.07 0.08 0.12

Port Size M3 M3 M5-#10-32

Series

41 info

43 info

44 info

Flow Cv
0.035 0.07 0.10

Port Size M3 M5-#10-32-1/8" M5-#10-32

[sf_button colour="blue" type="standard" size="large" link="/distributors/" target="_self" icon="" dropshadow="no" rounded="yes" extraclass=""]How To Order This Valve[/sf_button]
Quickview
BULLET VALVE®

Products
Quickview
BULLET VALVE®
Products
The MAC Advantage Features:
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING

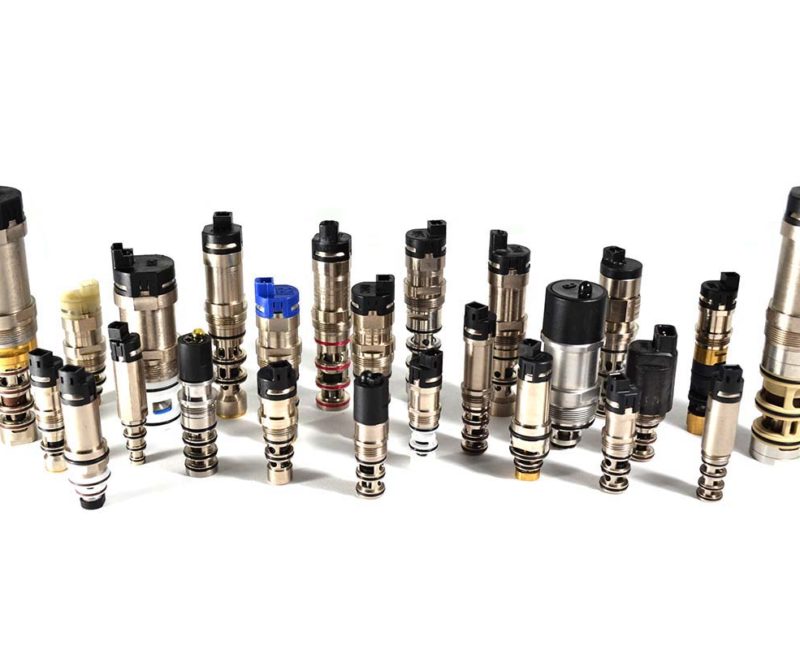

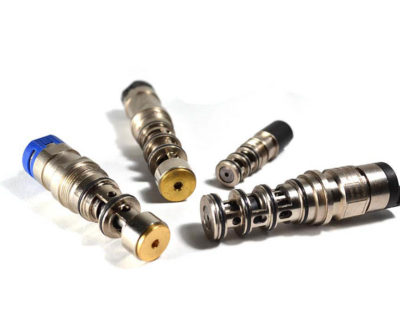

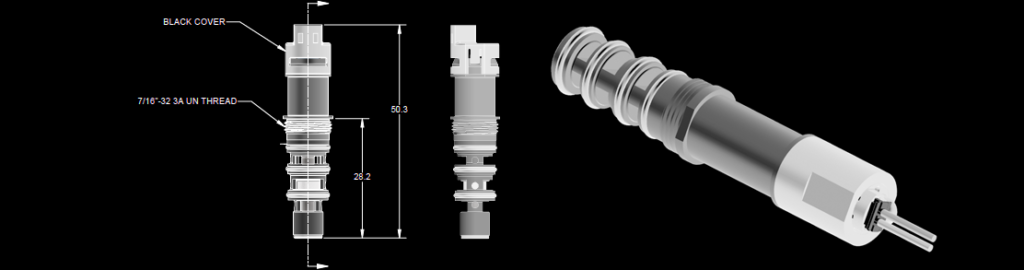

The Bullet Valve® (BV) represents yet another evolution in air valve technology from MAC. The Bullet Valve utilizes "lifting" solenoid technology. The MAC "lifting" configuration is unique, however, in that the valve maintains a balanced design - a signature feature of a MAC valve - shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. 2-way and 3-way configurations of the BV cartridge (10mm, 14mm, and 21mm) are available. Application, Installation and Service Precautions
Cv (Max): 0.60

Configurations: Cartridge - Manifold: Non Plug-in

BViQ® is our latest Bullet Valve product

Click on image to download our Bullet Valve Catalog
Quickview
BViQ®

Products
Quickview
BViQ®
Products

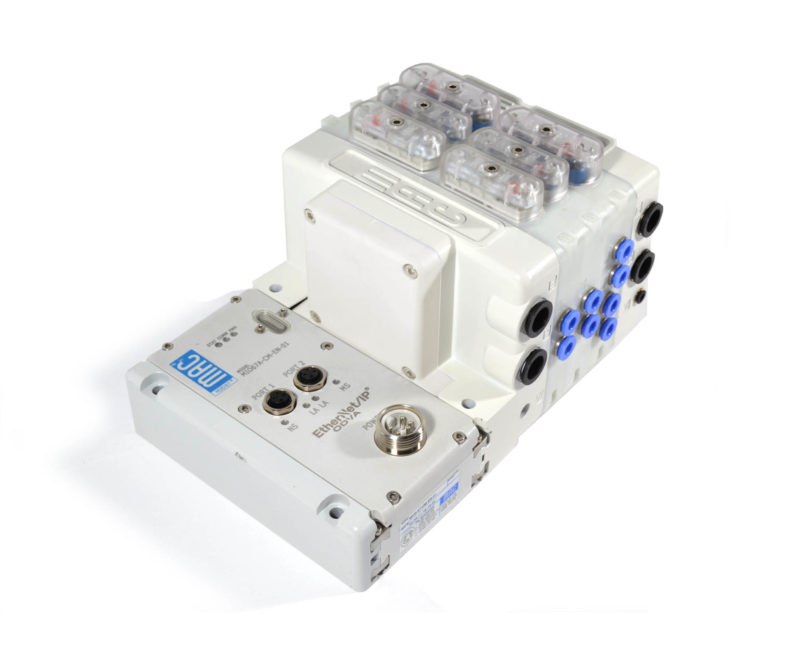

BViQ® brings the Bullet Valve® to the masses with a modular plug-in approach.
MAC Valves multi patented Bullet Valve® and subsequent products utilizing Bullet Valve® Technology have brought innovation to the air valve industry with MAC's patented balanced lifting-type solenoid design resulting in superior life, reliability, and repeatability, as well as superior flow in a compact package.
The BViQ® is available in B314 and BV414 configurations featuring these innovative characteristics:
- Dual Bullet Valve® Cartridge slices – reducing overall footprint
- Dual 4-way slices
- Intermixing of 3-way & 4-way valve slices in a common assembly
- MAConnect® – available for wire-free manifold interconnects
- Single fastener BV mounting – provides quick and simple assembly
- Adapts via MAConnect® to several interface adapter types – including MI/O-67®
- Many of the Bullet Valve® modifications available – optimized rubbers, flows, etc.
BViQ® Options and Drawings
Quickview
PULSE VALVE

Products

Quickview
PULSE VALVE
Products

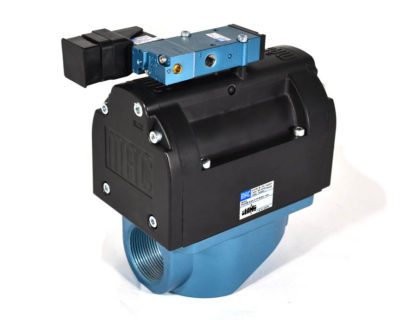

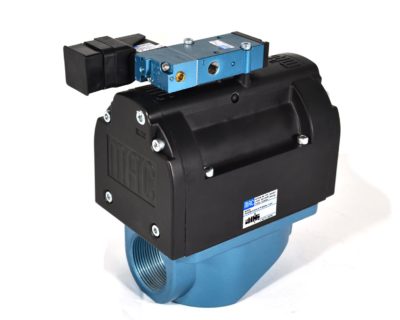

The MAC patented Pulse Valve series was developed to replace current diaphragm style technology and create a more robust and reliable valve solution in industrial applications. MAC Pulse Valves are ideal to replace existing diaphragm technology in applications such as reverse jet bag houses and dust collectors, pneumatic conveying and bulk material handling. The MAC patented Pulse Valve can be ordered in one of two pilot configurations: The Integral Solenoid pilot combines fast, repeatable pulses with the addition of a Manual Operator, while our Remote Bleed version to improve performance and reliability in Hazardous Locations. The main body of the MAC Pulse Valve utilizes bonded spool technology for superior reliability beyond existing diaphragm technology. A checked accumulator and a main spool with memory spring are used to ensure a shift back to the home position, for times when air supply may not be adequate. A line of adapter plates has also been released to replace existing diaphragm pulse valves with a direct drop-in, without disturbing existing plumbing. It is currently available in (3) sizes; the PV03, for ¾” and 1” applications and the PV06, for 1 ½” applications, and PV09 for 2" and 2 ½" applications.
MAC PV03 Brochure

MAC PV06 Brochure

MAC PV09 Brochure

MAC PV12 Brochure

MAC Pulse Valve Technical Paper

MAC Pulse Valve ATEX

Series	31 info	BV info	33 info	34 info
Flow Cv	0.06	0.07	0.08	0.12
Port Size	M3		M3	M5-#10-32

Series	41 info	43 info	44 info
Flow Cv	0.035	0.07	0.10
Port Size	M3	M5-#10-32-1/8"	M5-#10-32

Quickview

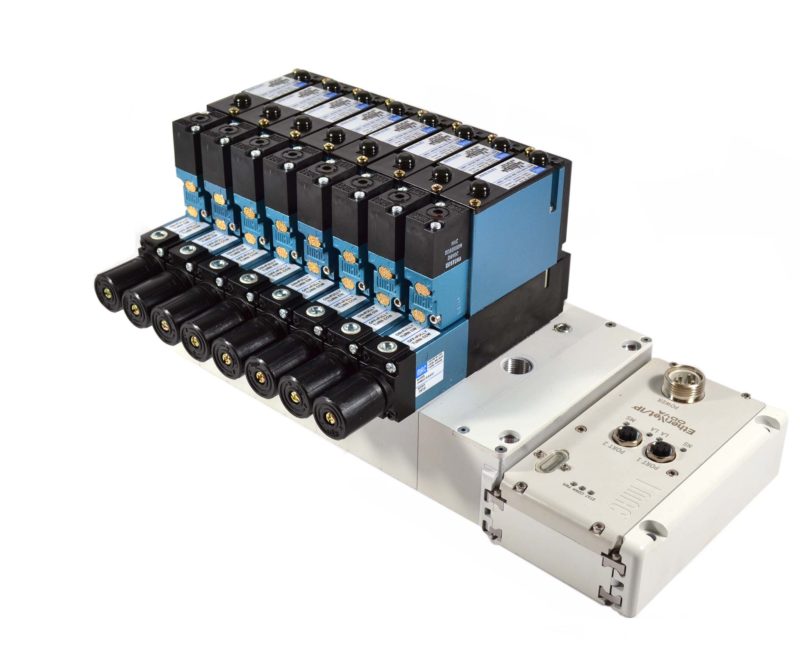

MI/O-67® Fieldbus


MAConnect MI/O-67® will utilize existing MAConnect® technology with MI/O-67® specific part numbers	5 Protocols EtherNet/IP® EtherCAT POWERLINK® PROFINET® Modbus/TCP®


3 Modules Digital, Analog and PowerPlus™ modules to accommodate any I/O or additional valves needed	IP67 Designed to meet IP67 washdown specifications (with appropriate valve series modifications)


European Conformity Indicates conformity protection standards for products sold within the EEA

Quickview
LIQUID VALVES

Products
Quickview
LIQUID VALVES
Products

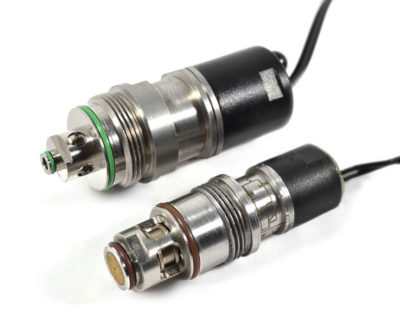

The MAC Advantage™ Features:
- 2-way, 3-way, variable flow, filling and dosing valves
- Wetted and non-wetted (media-separated) solenoids
- Accurate and repeatable dosing
- Dual-diaphragm D-Flex™ Technology
- Reliable operation in extreme environments
The MAC Liquid Valve line of products benefits from many of the same innovative features and associated benefits that have become synonymous with MAC’s performance characteristics over the years. Fast response times, reliable shifting forces and repeatable results are just some of the benefits you can expect from our fluid line of products. Proportional Flow Controls (PFC’s), Flow-Thru valves, Single and Dual Diaphragm (Media-Separated) valves, Wetted Solenoid valves and Dosing Fluid Pumps are a few of the product offerings in MAC’s liquid valve family of products. These valves also work great in pneumatic applications that require leak tight performance. The MAC Liquid Valve line of products is designed to last longer and perform stronger in the toughest applications. With fewer wear points than traditional valve technology, these valves are designed to last!
Single Diaphragm

Double Diaphragm

Wetted Solenoid

Pump-Medical

PFC

Flow-Thru

Pump
