48 Series

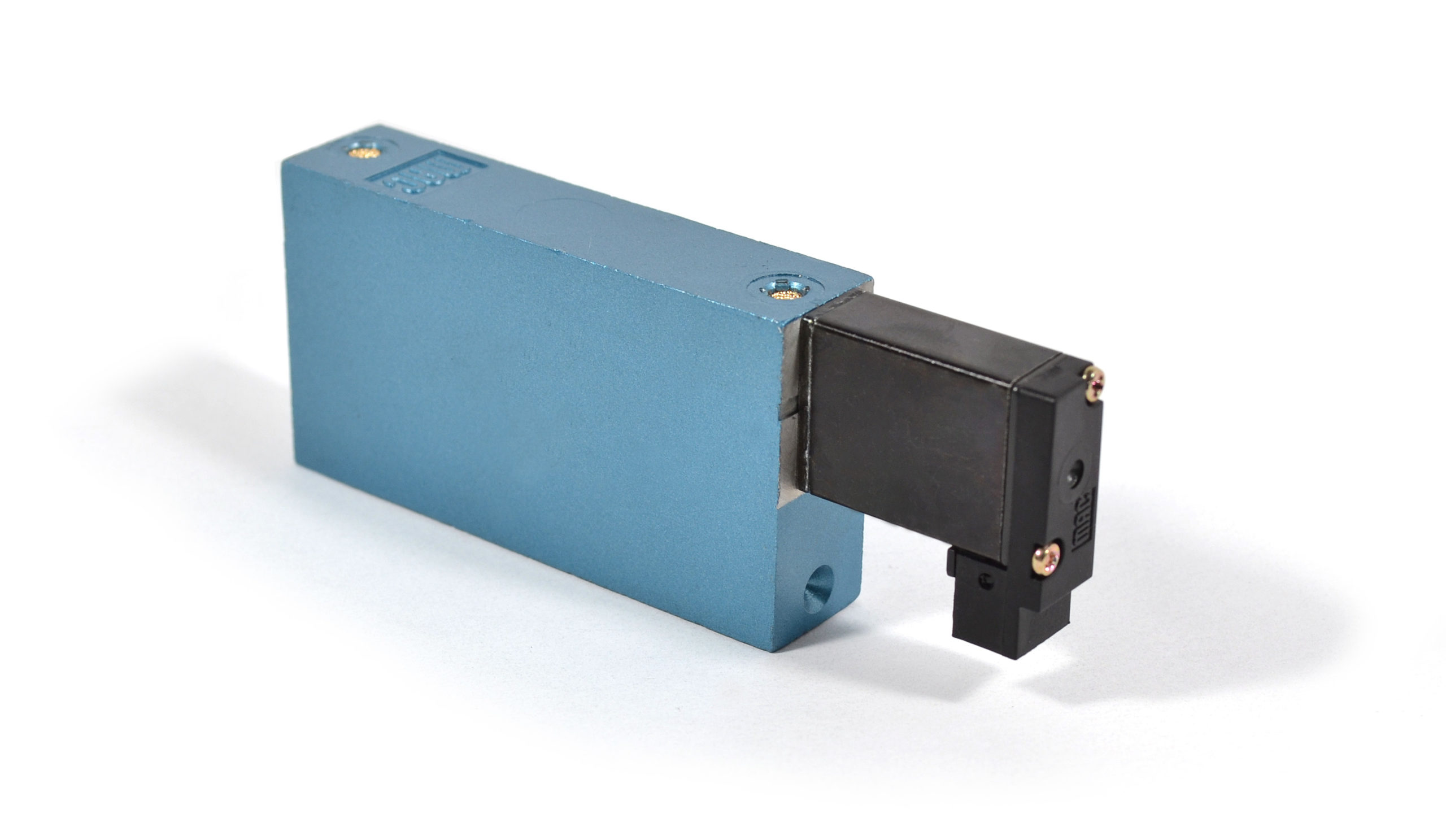

The MAC 48 Series is a high flow 16mm 4-way spool valve with a unique integral four way pilot.  The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area.  The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting.  The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.  For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages of our website.

Application, Installation and Service Precautions

Cv (Max):  1.1

Port Size:  1/8″

Configurations:  Inline – Manifold:  Plug-in/Non Plug-in
