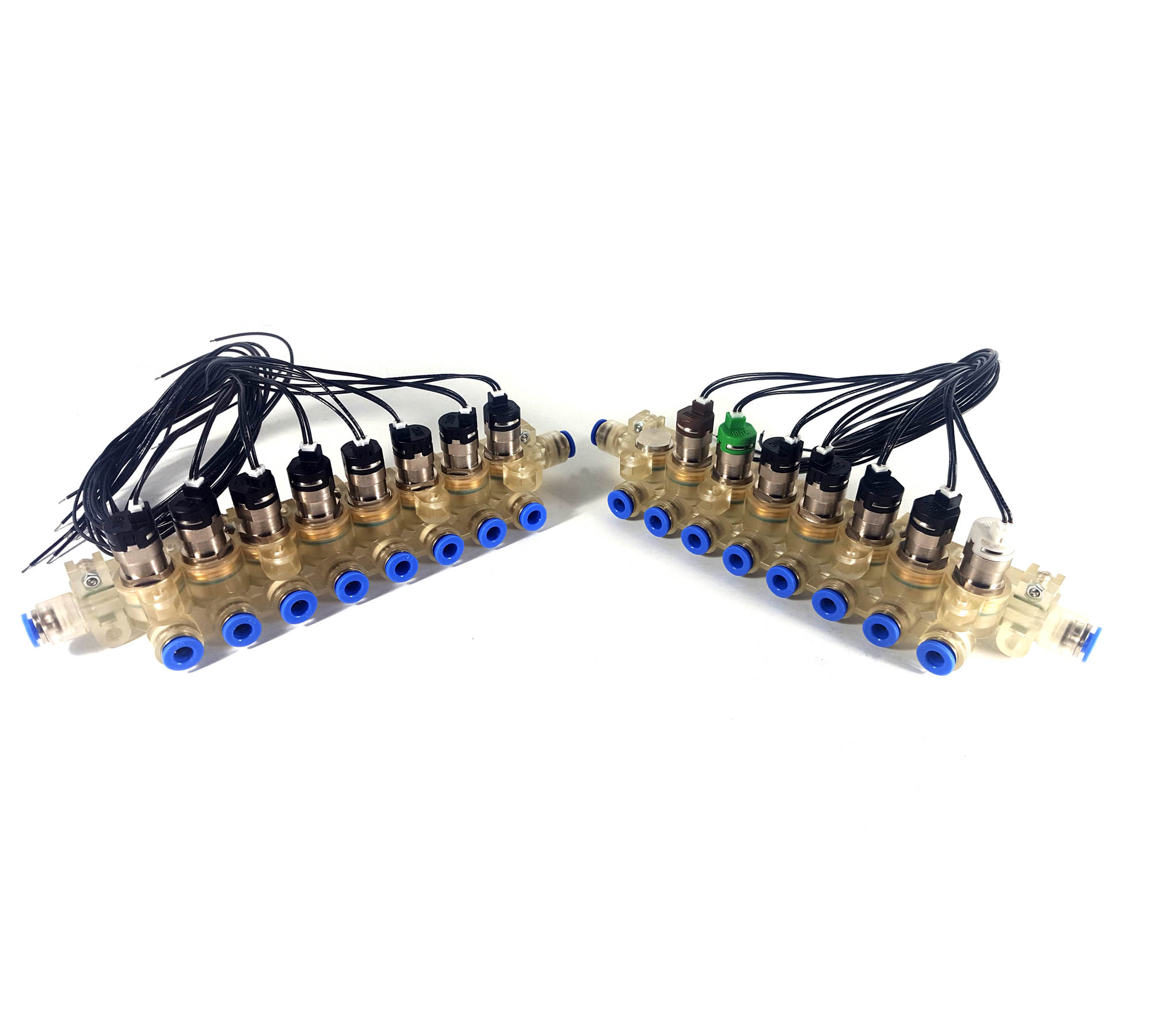

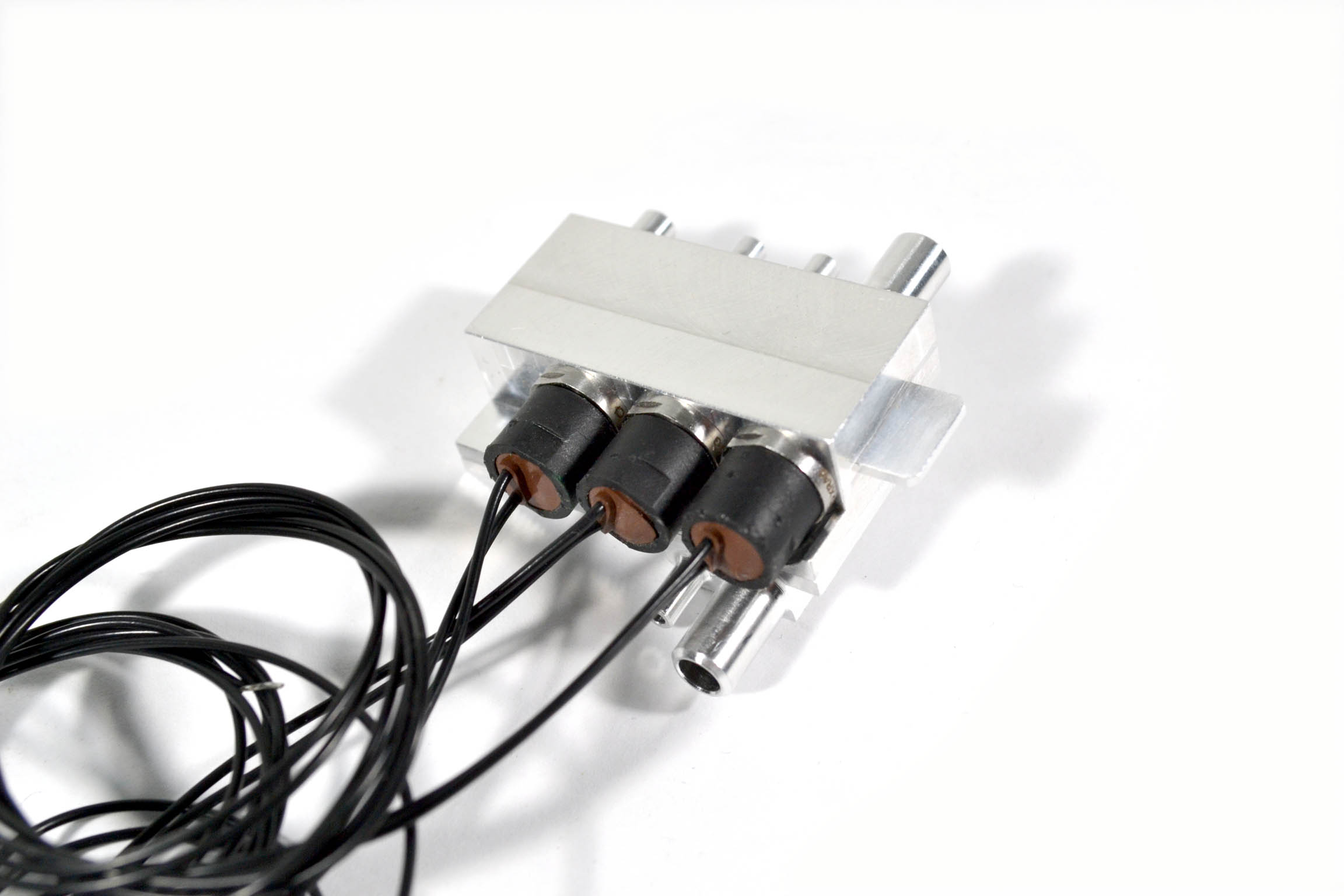

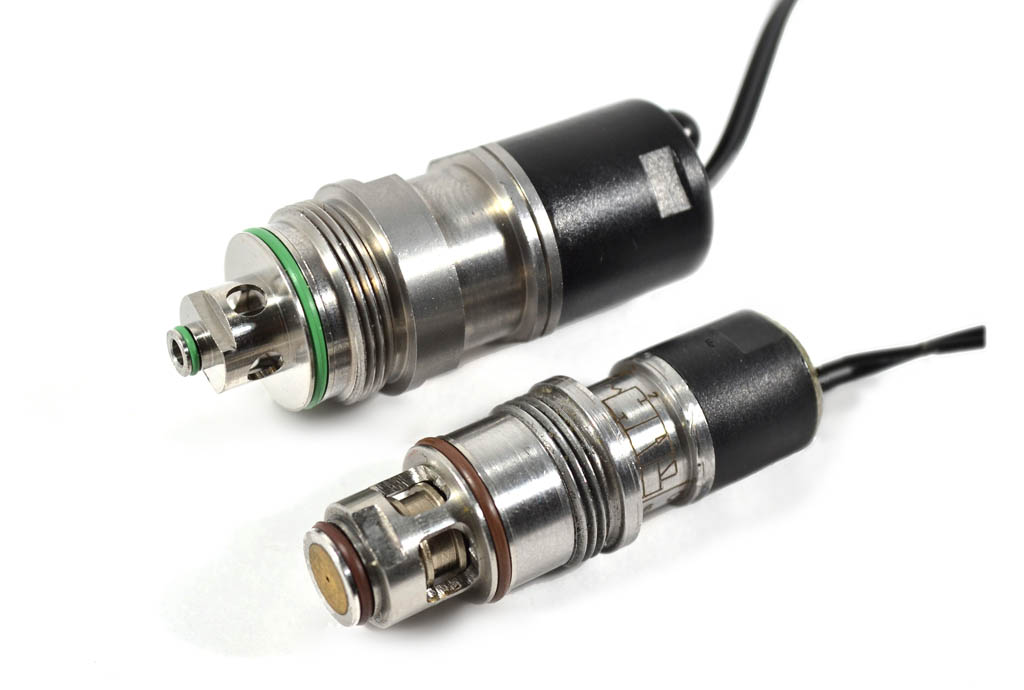

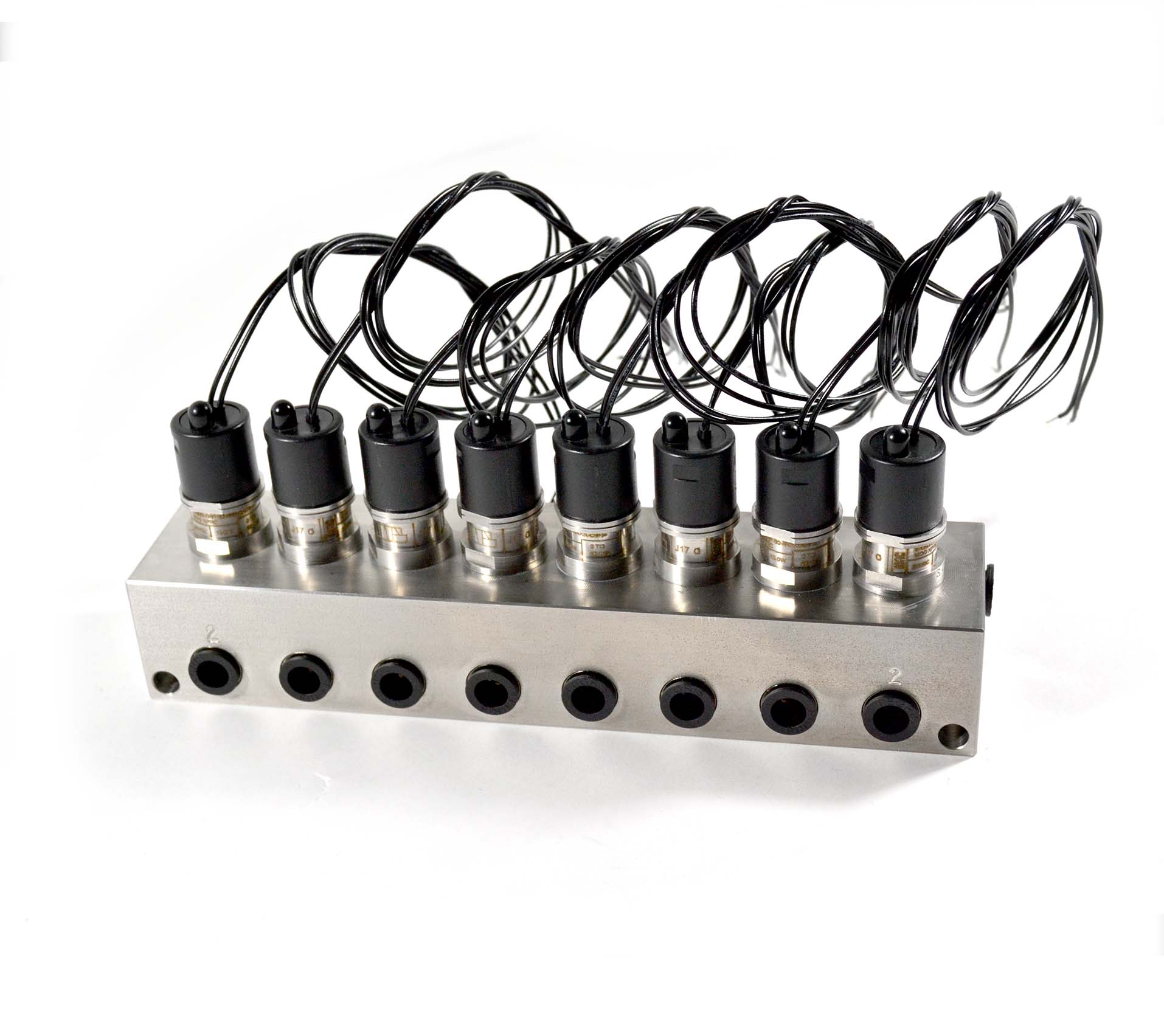

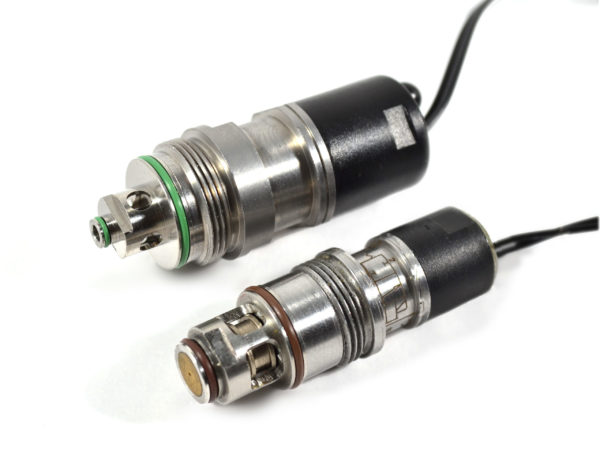

The MAC Advantage™ Features:
- 2-way, 3-way, variable flow, filling and dosing valves
- Wetted and non-wetted (media-separated) solenoids

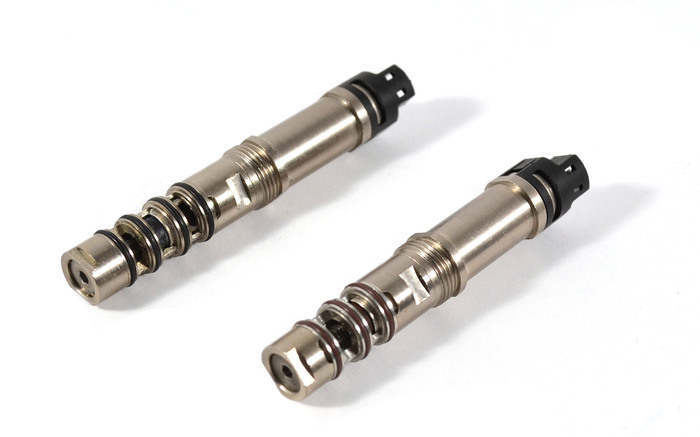

- Accurate and repeatable dosing
- Dual-diaphragm D-Flex™ Technology
- Reliable operation in extreme environments
The MAC Liquid Valve line of products benefits from many of the same innovative features and associated benefits that have become synonymous with MAC’s performance characteristics over the years. Fast response times, reliable shifting forces and repeatable results are just some of the benefits you can expect from our fluid line of products. Proportional Flow Controls (PFC’s), Flow-Thru valves, Single and Dual Diaphragm (Media-Separated) valves, Wetted Solenoid valves and Dosing Fluid Pumps are a few of the product offerings in MAC’s liquid valve family of products. These valves also work great in pneumatic applications that require leak tight performance. The MAC Liquid Valve line of products is designed to last longer and perform stronger in the toughest applications. With fewer wear points than traditional valve technology, these valves are designed to last!
![]() |
|


Hazardous Locations Technology2
ProductsMAC's extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175 Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application.
Explosion Proof
Small/large 3 way valves
Small/Large 4 way valves
Pulse valves
Intrinsically Safe
Bullet valves®
Small/large 3 way valves
Small/Large 4 way valves
Approvals
Approvals Matrix
Approval documents


Explosion Proof
ProductsApproval Documents
35 - MV Series
US Approval CA Approval ATEX Approval IECEx Approval
56-65- Series
US Approval CA Approval ATEX Approval
Series : 35 - 45 - 52 - 53 - 54 - 67 - 92 - 93 - 400 - PV - MV

Series : 56 - 57 - 58 - 59 - 82 - 200 - 800 - 6300 - 6500



BULLET VALVE®
ProductsDesign Features of Bullet™ Technology:
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- AN INTEGRATED POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING OPTIONS
Cv (Max): 0.60
Configurations: Cartridge - Manifold: Non Plug-in
BViQ® is our latest Bullet Valve product
Click on image to download our Bullet Valve Catalog




BV14
Products14mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV214) AND 3-WAY (BV314) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): Up to 0.24 Cv
Configurations: Cartridge
Click on image to download our Bullet Valve® Catalog




BViQ®
ProductsBViQ® brings the Bullet Valve® to the masses with a modular plug-in approach.
MAC Valves multi patented Bullet Valve® and subsequent products utilizing Bullet™ technology have brought innovation to the air valve industry with MAC’s patented balanced lifting-type solenoid design resulting in superior life, reliability, and repeatability, as well as superior flow in a compact package.The BViQ® is available in B314 and BV414 configurations featuring these innovative characteristics:
- Dual Bullet Valve® Cartridge slices – reducing overall footprint
- Dual 4-way slices
- Intermixing of 3-way & 4-way valve slices in a common assembly
- MAConnect® – available for wire-free manifold interconnects
- Single fastener BV mounting – provides quick and simple assembly
- Adapts via MAConnect® to several interface adapter types – including MI/O-67®
- Many of the Bullet Valve® modifications available – optimized rubbers, flows, etc.
BViQ® Options and Drawings



ISO VALVES
Products
Series |
ISO01 info |
ISO02 info |
ISO1 info |
ISO2 info |
ISO3 info |
---|---|---|---|---|---|
Flow Cv |
1.0 | 0.43 | 1.8 | 3.0 | 6.1 |
Port Size | 1/4" | 1/8" | 1/4-3/8" | 3/8-1/2" | 1/2-3/4" |


Hazardous Locations Technology
ProductsMAC's extensive line of valves approved for Hazardous Locations is distinguished by its industry leading technology and legendary reliability. Available in 2-way, 3-way and 4-way configurations, with flows up to 175 Cv and having globally recognized approvals, MAC has a valve solution that will bring value to your application. | |
![]() |
![]() |
Explosion Proof Small/large 3 way valves Small/Large 4 way valves Pulse valves | Intrinsically Safe Bullet valves® Small/large 3 way valves Small/Large 4 way valves |
![]() |
![]() |
Approvals Approvals Matrix Approval documents | Other Resources . . |


3-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 3 Way
Valves with 3 ports; inlet, outlet (cylinder) and exhaust. They are generally used to operate spring return cylinders or as pilots for larger diaphragm or piston operated valvesSmall 3 Way Valves
Air flows up to 1.2 CvLarge 3 Way Valves
Air flows from 1.5 Cv and higher

MI/O-67® Fieldbus
Products![]() |
![]() |
MAConnect MI/O-67® will utilize existing MAConnect® technology with MI/O-67® specific part numbers | 5 Protocols EtherNet/IP® EtherCAT POWERLINK® PROFINET® Modbus/TCP® |
![]() |
![]() |
3 Modules Digital, Analog and PowerPlus™ modules to accommodate any I/O or additional valves needed | IP67 Designed to meet IP67 washdown specifications (with appropriate valve series modifications) |
![]() |
![]() |
European Conformity Indicates conformity protection standards for products sold within the EEA | |
![]() |
|


BV10
Products10mm Bullet Valve®
MAC Advantage Features:
- 2-WAY (BV210) AND 3-WAY (BV310) CONFIGURATIONS AVAILABLE
- VERY FEW PARTS
- LONG LIFE LIFTING SOLENOID
- ONE PIECE POPPET / ARMATURE
- BALANCED DESIGN
- SOLENOID ISOLATED FROM CONTAMINATED AIR
- UNIQUE MOUNTING
Cv (Max): 2-Way up to 0.08, 3-Way up to 0.09
Configurations: Cartridge - Manifold: Non Plug-in
Click on image to download our Bullet Valve Catalog




4-WAY AIR VALVES
ProductsMAC Valves Solenoid Operated 4 Way
Valves with 4 ports; inlet, a common exhaust and two cylinder ports, one normally open and the other normally closed. Their common application is to operate double acting cylinders.Small 4 Way Valves
Air flows up to 1.2 CvLarge 4 Way Valves
Air flows from 1.2 Cv and higher

PULSE VALVE
ProductsMAC PV03 Brochure
MAC PV06 Brochure
MAC PV09 Brochure
MAC PV12 Brochure
MAC Pulse Valve Technical Paper
MAC Pulse Valve ATEX
